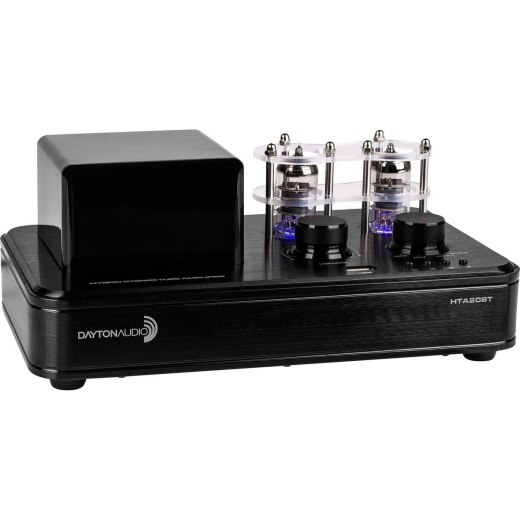

The Dayton Audio HTA20BT hybrid tube amplifier gives modern amp design a vintage makeover. Featuring the best of modern amp technology and functionality, the HTA20BT provides all of the convenience you to expect from an amp with the added benefit of classic vacuum tube sonic performance.
No CompromisesDebates may rage between whether solid-state or tube amplifiers produce a better listening experience; however, Dayton Audio solves the debate. By harnessing the best qualities of both, Dayton Audio's HTA20BT hybrid tube amplifier utilizes a classic A/B amp topology while employing vacuum tubes in the preamp circuit. The tubes' subtle character and warmth create a delightful homage to the classic valve amplifiers of the past.
Modern Connectivity with Vintage Flair Flexibility & PowerWith an output power rating of 12 watts per channel at 4 ohms, the HTA20BT packs a serious punch, perfect for almost any home audio listening system. The added convenience of Bluetooth ensures that your wireless streaming has the best possible quality and functionality. Front panel controls allow you to skip songs, play/pause, and change the input source.
Connected VersatilityTwo rear-mounted RCA stereo inputs allow connections to analog input sources, Optical/Coaxial inputs for digital modes, as well as outputs for headphones, or an additional subwoofer! The HTA20BT also has a USB port that can play any kind of media, including MP3, WMA, WAV, and APE files.
Homage to the ClassicsThe modern design on the HTA20BT perfectly complement the sleek, brushed aluminum housing. Exposed tubes only add to the modernized vintage aesthetic of the HTA20BT. A large volume knob on the front panel gives you access to the control you need to dial in your perfect sound.
Sight & SoundThe classic beauty of the HTA20BT makes the amp a perfect centerpiece in your room, while the functionality, power, and superb audio quality make the amp perfect to drive any stereo setup. With the HTA20BT, you receive the best of both worlds in amp design and function, as well as vintage attractiveness. See and hear the difference the HTA20BT gives your audio system.
Control At Your Finger TipsThe HTA20BT gives you complete control from the front panel of the amp. Easily select input source, playback, and tone. Complete with an oversized volume knob, not only is the control at your fingertips, but the amp looks great.
1. Volume Knob
2. USB Media Slot
3. Play/Pause Media
4. Previous Media
5. Next Media
6. Stop Media
7. Input Select
All The ConnectionsThe HTA20BT provides a vast array of input options with virtually any input device. Stream from USB, Bluetooth, or connect via digital inputs, or an RCA Aux input. The HTA20BT also features a built-in phono preamp to enjoy your vinyl collection. Completed with a subwoofer output, the HTA20BT is perfect for a 2.1 system.
8. Bluetooth Antenna
9. Aux 2 Input
10. Aux 1 Input
11. Headphone Output
12. Subwoofer Output
13. Speaker Outputs
14. Power Switch
15. Power Input
Specifications:- Power output: 12 WPC RMS @ 4 ohms
- THD: 0.5% @ Rated Power
- Minimum speaker impedance: 4 ohms
- Channel separation: 65 dB
- SNR: >80 dB
- Frequency response: 20-20,000 Hz
- Sub output: Fixed volume Preout for active subwoofer (HTA50BT is a full range amp with no internal crossover)
- Preamplifier tube: 6F2 x 2
- Transistors: Toshiba A1941 x 2, Toshiba C5198 x 2
- Bluetooth: Version 4.2
- Supports Bluetooth codecs: SBC and AAC
- Media playback file support: FLAC, WAV, APE, WMA, MP3
- Digital audio DAC SNR: 96 dB
- Digital audio DAC sample rate: Up to 16-bit/48kHz
- Input impedance: 47 kohms (minimum)
- Input sensitivity: 300 mV
- Power: 110/220 VAC, 50/60 Hz Standard IEC Connection
- Fuse Rating (120v): 5x20mm 5AL
- Dimensions: 4.2" x 9.2" x 6.18"
SPEC | HTA20BT | HTA100BT | HTA50BT |
Power Output: | 12WPC RMS @ 4 Ohms | 50WPC RMS @ 4 Ohms | 25WPC RMS @ 4 Ohms |
Frequency Response: | 20-20,000 Hz | 20-20,000 Hz | 20-20,000 Hz |
Amp Topology: | Hybrid Tube / Class A/B | Hybrid Tube / Class A/B | Hybrid Tube / Class A/B |
Inputs: | Bluetooth 4.2, 2 x Stereo RCA , USB | USB, Optical, Coaxial, Phono Bluetooth 5.0, Stereo RCA | Optical, Coaxial, Bluetooth 5.0, 2 x Stereo RCA, USB |
Outputs: | Speaker, Subwoofer, Headphone | Speaker, Subwoofer | Speaker, Subwoofer, Headphone |
