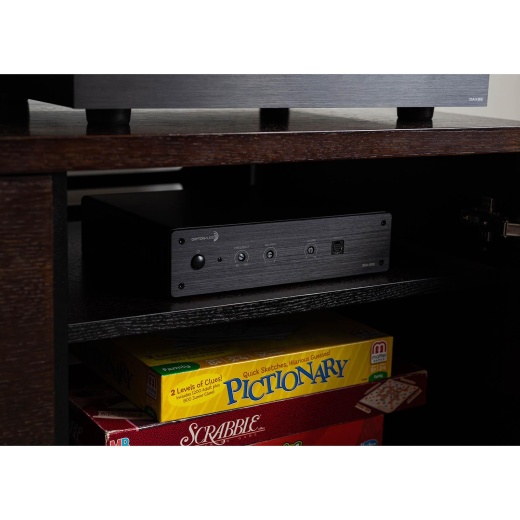

The Dayton Audio BSA-200 high-power bass shaker amplifier is designed and built specifically to power tactile transducers but works equally as well as a dedicated subwoofer amplifier. Its small form factor makes it perfect for tight spaces, while the included brackets allow for vertical or horizontal mounting. The frequency and balance knobs let you dial in the desired crossover point and output, giving you total control over your set-up.
The Dayton Audio BSA-200 is rated at 110 watts RMS per channel into 2 ohms. In bridged mono mode, both amplifier channels are combined for high-power monaural output. The amplifier is rated at 230 watts RMS into a single 4 ohm load when bridged.
Manual and automatic on/off modes allow easy integration into automated systems and saves power when not in use. 5V USB power output is designed for use with the Dayton Audio Wave-Link wireless system (not included). The Wave-Link system can link up to 5 receivers per transmitter giving you ultimate flexibility with remote mounting options.
Specifications: • Output power: 110 watts RMS per channel @ 2 ohms, 230 watts RMS @ 4 ohms (minimum impedance) bridged mono • Input sensitivity: 170 mV • Frequency Response: 5-200 Hz +/- 3 dB • Variable low pass: 50-200 Hz • Total harmonic distortion (stereo): 1%, (mono): 0.05% • Signal to noise ratio: 91 dB @ 100 Hz A-weighted • Power requirements: 110~240 VAC 50/60 Hz • Max power consumption: 313W • Stand-by power rating: 0.5W • Auto turn-on sensitivity: 10 mV • Remote: wired (12 ft. cable) • Amplifier Topology: Class D • Dimensions: 2.5" H x 9.5" W x 8.5" D.
FRONT PANEL:
1. Power Button
Press the Power button on the front panel of the BSA-200 to turn on and off the amplifier.
2. Power LED
The amplifier LED will be BLUE if the amplifier is active and ready to use. If the amplifier is in auto/standby mode the LED will be RED.
3. Frequency Adjustment
Rotate the frequency adjustment left or right to set the desired frequency output. The adjustment range is from 50Hz to 200Hz.
4. Balance Adjustment
Rotate the balance adjustment (stereo mode) left or right to set the desired output balance of left and right channels.
5. Volume Adjustment
Press the volume – or + button to adjust the amplifier output to the desired level.
6. Remote
The included wired remote has volume adjustment and power button for your convenience but is not required to operate the amplifier. Connect the remote to the front panel, be careful to properly align the connector.
1. Line Out
Line output RCA L/R connectors can be used to connect (daisy chain) multiple BSA-200 amplifiers together. The number of amplifiers should be limited to 4 in this type of configuration.
2. Line In
Line input RCA L/R connectors for connection to your source device.
3. Auto Switch
Auto position enables the amplifier to turn on from standby mode when input signal is detected. The ON position will keep the amplifier in a continuous powered on mode.
4. Stereo / Bridge Switch
The BSA-200 can be used in stereo and bridge modes, in stereo mode L/R channels are separated, when used in bridge mode the L/R channels are combined as mono output.
5. USB
USB power output port can be used with the Dayton Audio Wave-Link wireless audio system or other power 5V devices.
6. Speaker Out
Speaker outputs are for stereo or bridge mode, the connectors are binding post style and will accept banana type connectors or bare wire.
7. Voltage Switch
This amplifier can accept 110V to 240V for either North American or European use. Make sure the amplifier is powered off and the cord unplugged before changing the voltage.
8. Fused Power Input
Connect included power cable to power input connector, then connect power source.
WARNING-DO NOT PLUG AMPLIFIER INTO ANY TYPE OF POWER CONDITIONER.
Below the power cable input is the fuse assembly. Disconnect power to amplifier before removing fuse assembly, pull straight out to access the main and spare fuse.
1. Power Button
Press the power button on the remote control to turn on and off the amplifier.
2. Volume Adjustment
Press the volume – or + button to adjust the amplifier output to the desired level. There are 21 steps between silent and full gain.
With a Dayton Audio 5 year warranty, it’s more than a guarantee, it’s a promise. We stand behind our products and our warranty is a demonstration of our commitment to quality and reliability.
