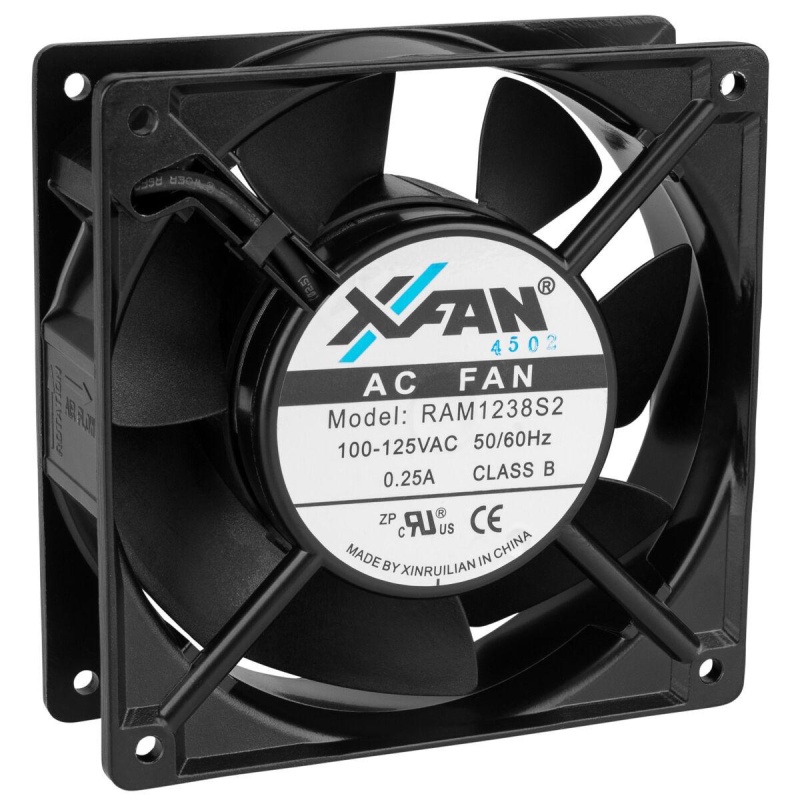

Muffin Cooling Fan 100-125 Vac 77/86 Cfm 4-5/8" X 1-1/2" Ram1238s2

SKU: PXP-259-150
Out of stock
Out of stock
  • Standard 120 mm x 120 mm x 38 mm frame size
  • 7-blade plastic impeller
  • Rugged aluminum alloy frame
  • Sleeve bearing
Unit Price
Quantity
US$ 17.43
US$ 25.99
Out of stock
Notify me when product is in stock
Options
Brand
Parts Express
Unit of Measure
Each
Barcode
844632039515
Specifications Sheet
Specifications Sheet.pdf
(0.25MB)
Parts Express Factory Buyout Warranty
Parts Express Factory Buyout Warranty.pdf
(0.01MB)
Description

Popular-sized, high output 85 CFM AC fan that's used in larger electronic equipment and rack cooling features a 7-blade plastic impeller and aluminum alloy frame. Power cord not included. Made in Taiwan.

Specifications: • Input voltage: 100-125 VAC • Frequency.: 50/60 Hz • Current: 0.25 A • Power: 15/14 W • Maximum air flow: 85 CFM • Noise: 40/42 dBA • Static pressure: 5.3/7.2 • Bearing system: Sleeve • Dimensions: 4-5/8" H x 4-5/8" W x 1-1/2" D (120 x 120 x 38 mm) • Mounting holes: 4-1/8" (105 mm) O.C. • Safety approvals: CE, UL recognized • Model: RAM1238S2.

Shipping specs
Weight
1.25 lbs
Dimensions
4.75" x 0" x 0"
