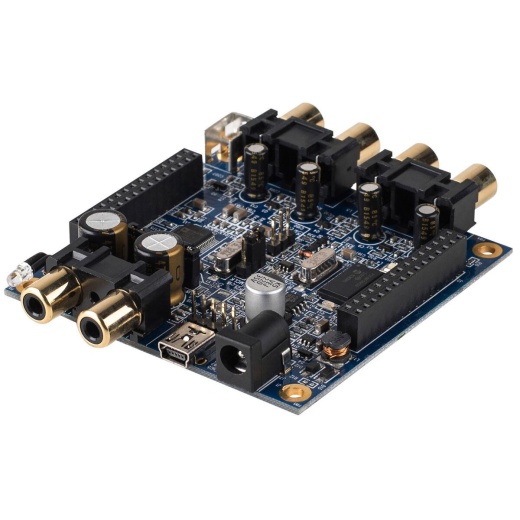

The miniDSP 2x4 kit is a low cost, low power DIY Digital Signal Processor (DSP) board with two analog inputs and four analog outputs. Typically connected between your analog source and a multi-channel amplifier, this pocket size module packs all the filter tools you need to get started with tuning your 2 way or 4 way subwoofer.
At the core of the miniDSP 2x4 kit solution is the combination of intelligent onboard firmware combined with the miniDSP flexible software plug-in. May it be a PC or Mac, the first step will involve programming the device over the driverless USB 2.0 port. Using the onboard Digital Signal Processor (DSP), you can configure the onboard parametric/graphic equalizers (PEQ), crossovers, levels and time alignment in real time. All settings are automatically stored and reloaded at boot up.
Software plug-in (sold separately):
Specifications • Digital signal processor engine: 28/56 bit • Sample rate: 48 kHz • ADC/DAC data resolution: 24 bits • Analog audio input/output: Unbalanced RCA • Maximum input level: 0.9Vrms, 2Vrms • Dynamic range un-weighted: >98 dB • Input impedance: 20 K ohms • Maximum level, unbalanced: 0.9Vrms (2.5Vpp) • Output impedance: 560 ohms • Power supply: Powered from USB cable, 4.5-24 VDC input via DC 2.1mm round connector • Current requirement: 5 VCD, 150mA • Dimensions: 2.95" x 2.95".
