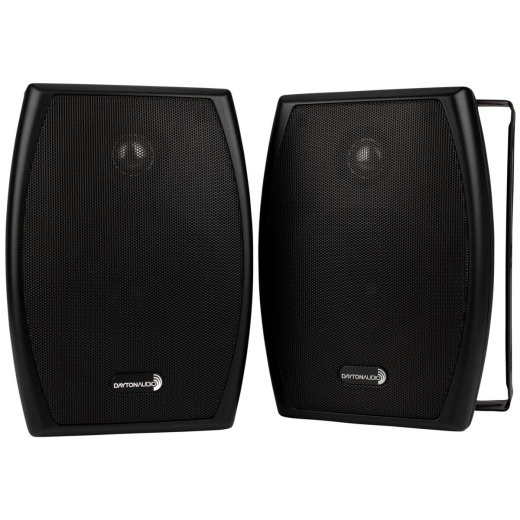

Dayton Audio Io525bt 5-1/4" 2-Way Indoor/Outdoor Speaker Pair Black

SKU: PXP-310-008
  • Includes built-in, bypassable, multi-tap 70V transformer for commercial distributed speaker applications
  • Stylish, contemporary appearance suits indoor environments as well as outdoors
  • Weather resistant ABS plastic enclosure and aluminum grills provide years of service
  • Polypropylene 5-1/4" woofer with rubber surround produces balanced, accurate bass/mid response
  • Metalized Mylar 1" dome tweeter for clean, non-fatiguing HF output
  • Installs easily on walls and ceiling; hardware included
Unit Price
Quantity
Subtotal
US$ 189.05
US$ 194.99
US$ 189.05
US$ 194.99
US$ 187.921%
2
US$ 187.251%
3
Congratulations! You got a great price!
Add to cart Added
Checkout
Free shipping on orders over US$ 200
Buy more items from this warehouse and get free shipping!
Options
Brand
Model
IO525BT
Unit of Measure
Pairs
Barcode
848791000225
Dayton Audio IO525/IO655 Manual
Dayton Audio IO525 Architectural & Engineering Specification Sheet
Dayton Audio Manufacturer Warranty
Description
Dayton Audio IO525BT 6-1/2" 2-Way Indoor/Outdoor Speaker

Outdoor sound this good has never been so affordable! The IO525BT speakers from Dayton Audio provide excellent sonic performance and famous Dayton Audio value in a compact, elegant package that's easy to mount anywhere -- indoors or outdoors.

    Key Specs:
  • Design: 5-1/2" 2-Way Indoor Outdoor Speaker
  • Woofer: 5-1/2" Mineral-Filled Polypropylene Cone
  • Tweeter: 1" Metalized Mylar Dome
  • Power Handling (RMS): 40 Watts @ 8 Ohms
  • Power Handling (MAX): 75 Watts @ 8 Ohms
  • Frequency Response: 55-20,000 Hz

We Got Your Back

We stand behind our products and our warranty is a demonstration of our commitment to quality and reliability.

Hi-Fi Full Range

Each IO525BT speaker features a mineral-filled poly cone 5-1/4" woofer and metalized Mylar 1" dome tweeter, for full-range high fidelity performance. The crossover network was computer optimized by Dayton Audio and then fine-tuned via extensive listening tests.


Consumer & Commercial Applications

Flexibility makes the IO525BT a perfect go-to speaker in any type of install. With 70V/100V transformer taps, the speaker can be used in commercial installations such as background music and paging systems in bars, hotels, conference rooms, and offices. In addition, the IO525BT includes an 8-ohm bypass option for use with consumer amps for residential applications such as pools, patios, gardens, and porches. The IO525BT is a great option for virtually any installation, residential or commercial.

Includes yoke-style mounting brackets, stainless steel hardware, and corrosion-resistant nickel plated push terminals for fast installation and wiring.

For Use Indoors & Out

The result of this effort is a detail-rich, natural sounding speaker system that is at home in dens, bedrooms, and offices as much as it is suitable for patios or beneath soffits. Thanks to rugged ABS construction and aluminum grills, these loudspeakers will keep their great looks for years.

Uses:

  • Patio, decks, gardens
  • Outdoor gathering spaces
  • Businesses, stores
  • Bars and restaurants

Shop the Whole IOX LineIO655BT 6-1/2"IO655WT 6-1/2"IO525BT 5-1/4"IO525WT 5-1/4"
  • Size: 6-1/2"
  • Color: Black
  • Sold As: Pairs
  • Size: 6-1/2"
  • Color: White
  • Sold As: Pairs
  • Size: 5-1/4"
  • Color: Black
  • Sold As: Pairs
  • Size: 5-14"
  • Color: White
  • Sold As: Pairs
IO800BT 8"IO800WT 8"
  • Size: 8"
  • Color: Black
  • Sold As: Each
  • Size: 8"
  • Color: White
  • Sold As: Each
Shop All Indoor/Outdoor SpeakersIO Line

  • 70V/100V transformer with 8?ohm bypass
  • Stylish, contemporary appearance suits indoor environments as well as outdoors
  • Weather resistant ABS plastic enclosure and aluminum grills provide years of service
  • Available in 5?1/4", 6?1/2", and 8" versions in black and white

IOX Line

  • Passive radiator produces extended low?end response for deep, tight bass uncharacteristic of outdoor speakers
  • 70V/100V transformer with 8?ohm bypass
  • Sealed IP66 ABS enclosure protects the speaker from the outdoor elements
  • Available in 6?1/2" and 8" versions in black and white

Pendant Line

  • Versatile mounting brackets for pendant mounting, wall mount, or landscape applications
  • Integrated 70V transformer with selectable taps and 8?ohm bypass
  • Suitable for indoor and outdoor installation
  • Available in 4", 6?1/2", and 8" versions in black and white (4" only available in black)

Outdoor Subs

Add additional low-end with Dayton Audio’s indoor/outdoor subwoofers. With a burial and above-ground versions, the subs make adding bass extremely easy to any patio, pool, gardens, or landscaped audio. Both versions are compact and discrete to not disrupt your area’s aesthetics. Rugged and weather resistant design ensure a long-lasting life. The sub line delivers outstanding bass and value for any outdoor audio system

Don't Trust Us...Trust Our CustomersWell Made"I've had 6 of these in service for over 3 months now in a retail environment and a warehouse environment. They sound great for what they are, and are built well and include everything you need to mount and install."

- Nick S.

Specifications:
  • Design: 5-1/4" 2-Way Indoor Outdoor
  • Power Handling (RMS): 40 Watts
  • Power Handling (MAX): 75 Watts
  • Frequency Response: 55-20,000 Hz
  • Impedance: 8? / 70V
  • SPL: 85 dB 1W/1m
  • 70V Taps: 4W, 8W, 16W, 30W
  • Dimensions: 9-1/2" W x 6-3/4" D x 7-1/4" H
  • Weight: 7.05 lbs. (each)
Need Some More Help?

Need some help with your project? Part Express's technical support staff can help answer any questions that you might have and help ensure that your speaker design and build are successful.

Customer Service

To enquire about an order or report an order problem:

Email:

Phone:

Hours: 8 AM–6 PM Monday – Friday ET
Closed Saturday & Sunday

Technical Support

To get technical information about our products:

Email:

Phone:

Hours: 8 AM-6 PM Monday - Friday ET
Closed Saturday & Sunday

Additional Resources

We pride ourselves on being an authority in the speaker building and DIY community. With over 60 years of combined engineering experience, our team of engineers is here to help with your build. Below are some useful tools to get you started.

Get Inspired and Learn From The Best

Parts Express is a leading supplier in raw drivers, speaker components, and resources for speaker builders. Whether you are a seasoned vet or someone looking to find a new hobby, Parts Express has the gear and resources you need to complete your next project. The large community of speaker builders on our forum allow you to learn from some of the best in the business. For more inspiration, check out the which showcases a variety of designs from the speaker building community.

Constant Voltage (70-Volt) Audio Systems

Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire. The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.

Shipping specs
Weight
14.05 lbs
Dimensions
17" x 0" x 0"
Shipping from
This product is shipped from our supplier's warehouse in Springboro, OH, United States
Our guarantee
This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
A 25% handling charge is levied against all authorized returns except those due to our error. Unauthorized returns are subject to a 40% handling charge. Damages & defects must be reported to us within 14 days.
