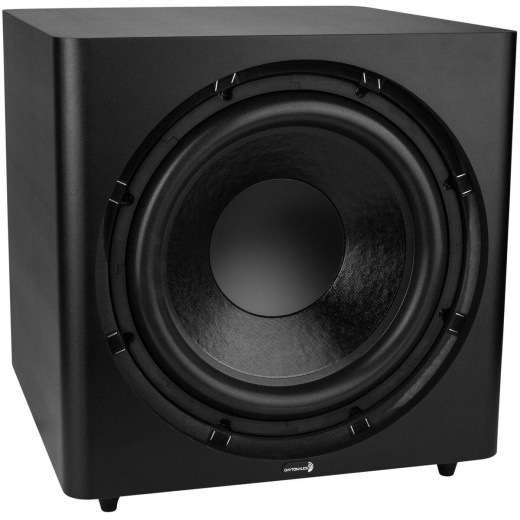

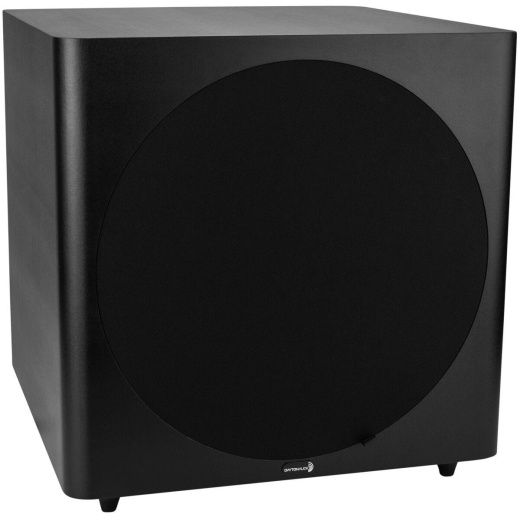

The Dayton Audio SUB-1500 15" powered subwoofer system is the perfect addition to any home theater system. This powered sub features a bottom-firing, flared port, bass reflex design for reduced port noise and increased bass response. It also utilizes a long-throw 15" woofer and up to 150 watts of house-shaking power.
Features- Downward-firing flared port design for clean, powerful bass that is perfect for small home theaters or listening rooms
- Selectable "Auto-on" mode that saves energy when not in use
- Heavy duty long-throw 15" woofer with a response down to 23Hz
- Unobtrusive textured black vinyl finish that fits into any décor

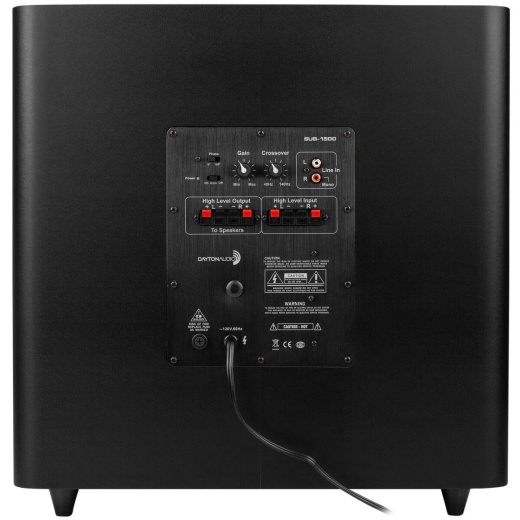

The amplifier features high and low level inputs and high level outputs, a phase switch, independent volume control, an auto on/off switch (activated by an input signal) and a variable 12 dB electronic low pass filter. This compact sub is finished in an unobtrusive black vinyl that will complement any décor.
1. Line Level Inputs
The line level inputs are used to connect pre-out or preamplifier outputs directly to the subwoofer amplifier's internal crossover. These inputs are summed to mono. This is the preferred way to connect the subwoofer amplifier. If you have a mono line level signal from a "Pro-Logic" or "Dolby Digital" receiver use the right "red" input. Note: If a LFE mono output is connected, set the crossover point to maximum.
2. High Level Inputs
If preamplifier outputs are not available, use the high-level (speaker) inputs. The speaker level inputs can be connected directly to the amplifier by inserting the speaker wire.
3. High Level Outputs
There are also high level outputs which can be used to connect to main speakers or to another powered subwoofer with high level inputs. Note: High level outputs are paralleled to the high level inputs with no high pass filter.
4. Crossover Frequency Control
Continuously variable from 40 Hz at 12 dB/octave. Set the frequency control to where the audio does not sound "muddy", normally between 60-80 Hz. Note: If a LFE mono output is connected set the crossover point to maximum.
5. Gain Control
Adjusts the output level of the subwoofer. Set the level to where the bass frequencies blend with the other speakers. Note: Most people have a tendency to set the level too high, which makes the audio sound "boomy".
6. Phase Switch
Selectable between 0° and 180°. This assists subwoofer placement. The correct position will be the one that provides the most apparent bass output.
7. Power Switch (Auto On/Off)
When the power is in the auto position, the amplifier will automatically turn on when a signal is present. Note: In auto/off mode, the power on LED is always on (red), even when amp is in rest mode (off). The power LED will turn green when the unit is activated.
Sub Placement
The SUB Series Subwoofer Systems will produce more bass when they are placed in a corner. Choose a corner that is close to the component area and place the sub at the front of the listening area.
If you need a little more control over the way your sub sounds, consider adding DSP and acoustic treatment.
Shop All SUB Series SUB-800 Size: 8"Power Handling (RMS): 80W
Frequency Response: 40-140HZ SUB-1000 Size: 10"
Power Handling (RMS): 100W
Frequency Response: 30-140Hz SUB-1200 Size: 12"
Power Handling (RMS): 120W
Frequency Response: 25-140Hz SUB-1500 Size: 15"
Power Handling (RMS): 150W
Frequency Response: 23-140Hz And Our Customers Say… Great value and sound. Get it!"I replaced a sub that came with a theater in a box sound system. It was the last speaker of that kit I changed out and what a difference it has made. This is deep and tight. What was booming and muddy now has smooth way down sound and theater effects are more impressive with out a thin rattle of the smaller sub I replaced. Best value speaker I have purchased in a long time. Controls are as expected and work well. The fit and finish is fine for this price point and after all this is not out where you look at it. You will not be disappointed with this sub." - Ron S.
All backed by a 5-Year Warranty
We stand behind our products and our warranty is a demonstration of our commitment to quality and reliability.
Specifications
- Power output: 150 watts RMS
- Frequency response: 23-140 Hz
- Box design: Ported
- Inputs: RCA line level & speaker level
- Outputs: Speaker level
- Crossover frequency control: Continuously variable from 40 Hz to 140 Hz @ 12 dB/octave
- Controls: Phase switch, Auto On/Off
- Power requirements: 120 VAC, 60 Hz
- Dimensions (plastic feet included): 19-3/4" H x 19-1/4" W x 19-3/4" D
Dayton Audio's DSP-LF Low Frequency DSP Controller gives you the power to revolutionize your home theater or listening room's low-end dynamic using digital signal processing. Easily integrate the DSP-LF into an existing audio system and take control over your bass response all from your smart mobile device. In tandem with the free iWoofer, Android/iOS app, the DSP-LF puts you in control of your bass's sonic character, tailored perfectly for the sound you desire.
Interested in Building Your Own Subwoofer?We also offer DIY subwoofer kits that come in all shapes and sized. We have kits for all skill levels. Find a new hobby by building your own subwoofer.
We have a large collection of resources to help assist you in your builds. We also have a huge user community that will help inspire DIY projects
