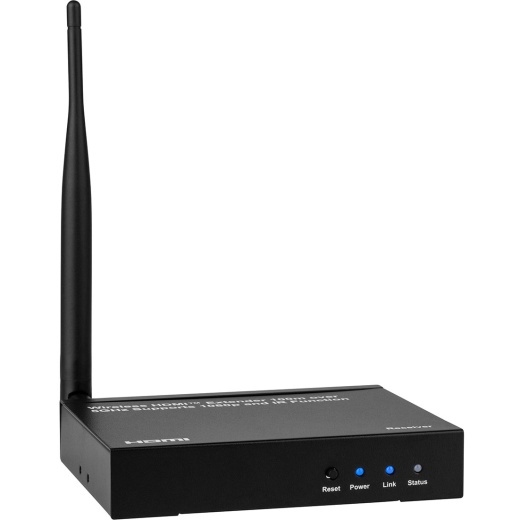

Wireless 5 Ghz Hdmi Extender Optional Receiver

SKU: PXP-184-453
  • Simple plug and play, no software needed
  • Extends HDMI signal up to 328 ft. for convenience
  • Compliant with HDCP 1.3
  • Supports LPCM and other uncompressed audio
  • Audio sampling rate up to 48 KHz
  • Includes one IR extender cable that plugs into the receiver and transmitter for controlling the source at the displays location
  • FCC, CE, RoHS certified
Unit Price
Quantity
Subtotal
US$ 183.32
US$ 213.99
US$ 183.32
US$ 213.99
US$ 182.221%
2
US$ 181.581%
3
Congratulations! You got a great price!
Add to cart Added
Checkout
Free shipping on orders over US$ 200
Buy more items from this warehouse and get free shipping!
Options
Unit of Measure
Each
Barcode
848864059396
Wireless HDMI Extender Transmitter/Receiver System Additional Linking Instructions
Parts Express Standard Warranty
Description

This wireless HDMI extender lets you extend HDMI audio/video signal up to 328 ft. via 5 GHz band, with very low latency. It's ideal for point to point signal extension situations that require high quality HDMI video in a location where running cable is difficult or impossible. A built-in inferred extender enables the user to remotely control the source with its original remote at the display's location. This receiver kit includes one short IR cable that enables you to keep the wireless box out of sight. You must use the 3.5 mm cable and owner's manual that came with the 184-452 to sync the receiver to the transmitter. Only four receivers are able to sync with one transmitter.

Note: When adding extra receivers, follow the troubleshooting guide line-by-line. You must use the included 3.5 mm cable. Do not connect power to the transmitter or receiver until all other cables are attached. You must press reset on the transmitter and receiver exactly at the same time when instructed. If any of the four receivers stop receiving, power cycle it. Allow two to three minutes after pairing or power cycling for the picture to appear.

Specifications: • Receiver frequency: 5 GHz • Wireless extension distance without obstruction: 328 ft. (100m) • Power Requirements: 5 VDC @ 1A • Output resolution: Up to 1080p 60 Hz, depending on input resolution • Audio sampling rate: Up to 48 KHz • IR frequency range 20 - 60,000 Hz • Chassis material: Metal • Dimensions: 5.12" W x 3.94" D x 1" H (130 x 100 x 25.5 mm).

Shipping specs
Weight
1.25 lbs
Dimensions
10" x 0" x 0"
Shipping from
This product is shipped from our supplier's warehouse in Springboro, OH, United States
Our guarantee
This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
A 25% handling charge is levied against all authorized returns except those due to our error. Unauthorized returns are subject to a 40% handling charge. Damages & defects must be reported to us within 14 days.
