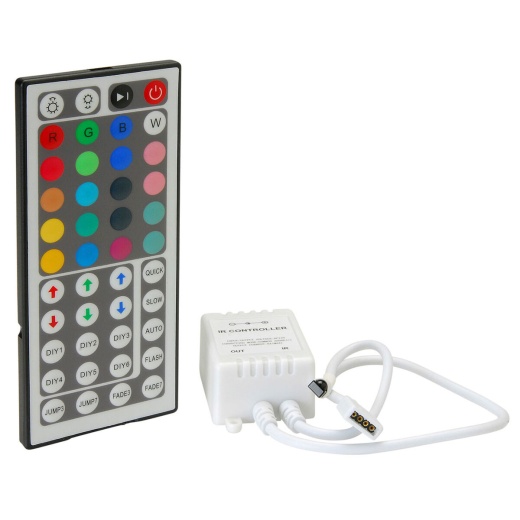

Create custom lighting effects with this 44-key IR remote control and LED control unit, that's specifically designed to work with 12 VDC RGB LED light strips. Adjust brightness, color, fade in/out, and flash rate. Supports up to five meters of RGB LED light strips. Other tri-color, common anode LEDs may be used if configured to work with 12 VDC supply voltage by the use of voltage dropping resistors. IR remote control uses a CR2025 battery (included). Requires 12 VDC power supply (not included).
Specifications: • Power requirements: 12 VDC, 2A (minimum recommended), 12 VDC, 6A (with max current draw from each of three LEDs) • Power input: 2.1 x 5.5 mm, center positive • Output: Three CMOS drain-open output • Connection type: Common anode • Control unit dimensions: 63 mm (2.48") L x 35 mm (1.38") W x 22 mm (0.87") H.
Note: To use the DIY memory keys, press the desired memory key, use the up/down red, green, or blue arrows to adjust to desired color, then press the DIY memory key again to store the color. Due to the IR operation of this product, it is possible for remote controls of other devices to inadvertently change LED settings.
Remote control button layoutBrightness + (7 steps) | Brightness - (7 steps) | Pause/Run | On/Off |
Static red | Static green | Static blue | Static white |
Static orange | Static pea green | Static dark blue | Static off-white |
Static dark yellow | Static cyan | Static royal blue | Static light pink |
Static yellow | Static light blue | Static pink | Static green white |
Static light yellow | Static sky blue | Static brown | Static blue white |
Increase red | Increase green | Increase blue | Speed up |
Decrease red | Decrease green | Decrease blue | Speed down |
Memory 1 | Memory 2 | Memory 3 | Automatic change |
Memory 4 | Memory 5 | Memory 6 | Flash on and off |
3 color change | 7 color change | 3 color fade change | 7 color fade change |
