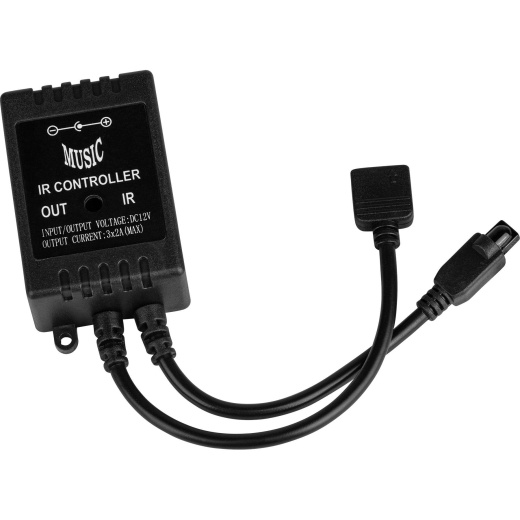

This light kit works perfect for adding music activated lighting to your home, business, or vehicle. It accepts a 12 VDC power supply with a 2.5 x 5.5 mm tip positive plug. The four prong jack works with LED light strips that have three negative channels (RGB) and a positive wire identified by an arrow. Swap out the current controller and remote to your current LED light strip to add music activated lights, or set up a brand new LED strip layout.
The IR remote controls sound activation mode, sound sensitivity, light mode, light brightness, and eight different colors. The four sound modes are fade between colors, fade all the way out between colors, switch between the colors without fading, switch between colors, and lights off without sound. Bring these sound activation modes inside to your home theater room, office, or vehicle and add musical ambiance, or party atmosphere to any area.
Note: Check with state laws about driving with interior lights on or flashing.
Specifications: Voltage input: 12 VDC • Power output: 12 VDC 6A Max • Working temperature: -4° to 140° F (-20° to 60° C) • Output channels: 3 • Static power consumption: < 1W • Controller dimensions: 1-3/8" W x 2" H x 7/8" D (35 x 50 x 21 mm) without mounting screw holes and wires • Wire lead with plug: 5" • IR lead: 4" • Screw holes: 1/10" Dia. • Remote dimensions: 2-1/8" W x 3-1/2" H x 1/4" D • Included remote battery: CR2025.
