Lavolta Pro Tm1809 Intelligent Programmable Smart Led Strip Light 16 Ft. Ip67 Waterproof/Dustproof

SKU: PXP-073-500
  • IP67 rated for dust resistance and waterproof up to 1 meter for outdoor use
  • Pre-terminated for use with the Lavolta LPC1 Intelligent Controller
  • Additional power input for use when connecting multiple strips
  • Nine-channel LED driver per LED segment
Unit Price
Quantity
Subtotal
US$ 82.42
US$ 100.00
US$ 82.42
US$ 100.00
US$ 81.931%
2
US$ 81.641%
3
Congratulations! You got a great price!
Add to cart Added
Checkout
Free shipping on orders over US$ 200
Buy more items from this warehouse and get free shipping!
Options
Brand
Model
TM1809
Unit of Measure
Each
Barcode
848864018300
TM1809 LED Driver Specifications
Lavolta RGB LED Controller Technical Drawing
Lavolta Manufacturer Warranty
Description

Common LED strips will flash, fade, and blend colors to create lighting scenes that thrill and amaze most people, but you are not most people and common is not for you.

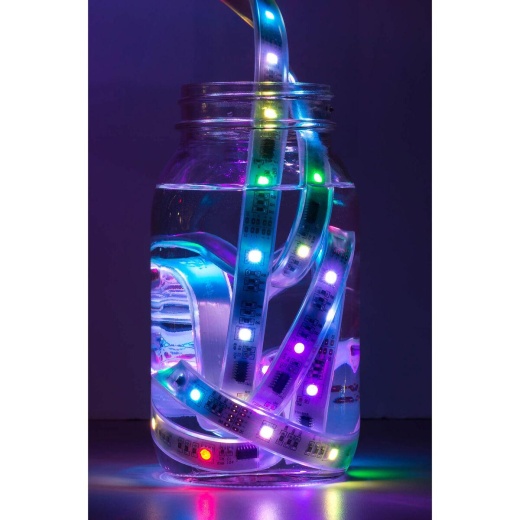

TM1809 LED strips feature a nine-channel LED driver that controls three RGB LEDs within each segment of the strip. The TM1809 LED driver is the magic behind the LED strip that allows you to control each LED on the strip down to the element level. Each strip features 10 segments per meter with 3 LEDs per segment. In total the TM1809 has 150 individual LED elements.

Pair the TM1809 LED strip with the to a TM1809 LED strip and watch the magic happen. The TH2010-X Dream-Color controller has 114 pre-programmed color and light sequences; from static colors to chasing effects. Blend pre-programmed scenes to make your own custom lighting sequence.

You can cut the LED strip between each segment to provide the optimum length of lighting strip, while the IP67 rating, due to the silicone encasement, provides water resistance up to 1 meter (3.28 feet) for outdoor use. A 2.1 x 5.5 mm power jack is provided for power insertion when daisy-chaining strips.

Strip Specifications: • Dust tight IP67 rated for protection against powerful water jets (up to 12.5 mm nozzle) and ingress of water when submerged up to 1 meter • Minimum power requirements (per strip): 12 VDC, 5A • IP67 rated • 2.1 x 5.5 mm power jack • Overall dimensions: 0.47" W x 196.80" L x 0.137" H. (12 x 5000 x 3.5 mm) • Segment dimensions: (42 segments per strip): 4" L.

RGB LED Specifications: • LED type: SMD 5050 • Red: 624 nm wavelength, 18 lumens • Green: 518 nm wavelength, 45 lumens • Blue: 471 nm wavelength, 18 lumens.

Shipping specs
Weight
0.6 lbs
Dimensions
9" x 0" x 0"
Shipping from
This product is shipped from our supplier's warehouse in Springboro, OH, United States
Our guarantee
This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
A 25% handling charge is levied against all authorized returns except those due to our error. Unauthorized returns are subject to a 40% handling charge. Damages & defects must be reported to us within 14 days.
