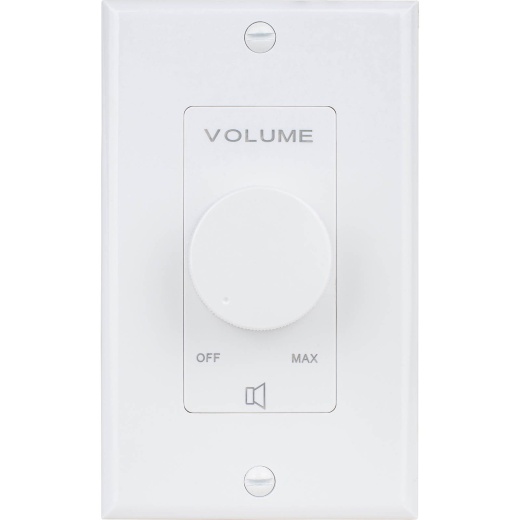

The Pyle PVC1 in-wall volume control has a depth of 2.6" and up to 100 watts load handling. Works with all audio and video systems. Perfect companion for the hi-fi four-pair speaker selector. Attractive standard and Decora-style wall plates included. Includes mounting ring and wire nuts for installation.
Specifications: • Frequency response: 20 Hz-20 kHz • Power handling: 100 watts RMS/channel • Attenuation: 1st position (slider at bottom): Full off; 2nd and 3rd position: 6 dB ±1 dB per step; 4th through 9th position: 3 dB ±1 dB per step; 10th position: Full on • Insulation resistance: 100 Mohm @ 500 VDC • Dielectric withstanding voltage: 500 VAC, 1 minute • Depth: 2-5/8" • Weight: 7.8 oz.
