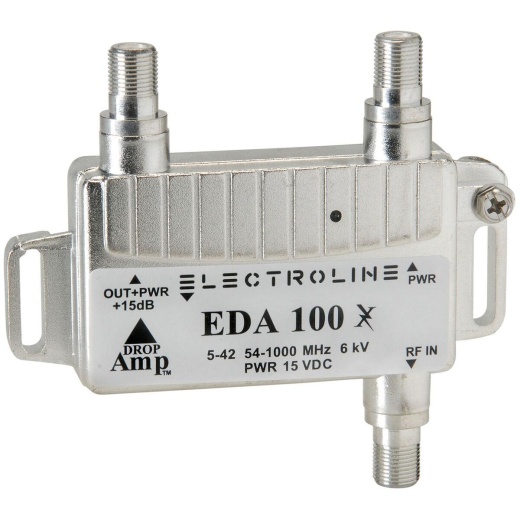

Electroline Eda100 Low Noise Miini Catv Cable And Antenna Tv Amplifier +15Db

SKU: PXP-182-576
  • Fully compatible with all digital and analog signal formats, forward and reverse
  • Noise factor of 3 dB
  • 6 kV surge protection on all outputs
  • Weatherproof housing
  • Sealed, 360º contact STCE-compliant F connectors
  • 15VDC 200mA pwer inserter included
Unit Price
Quantity
Subtotal
US$ 57.80
US$ 61.99
US$ 57.80
US$ 61.99
US$ 57.451%
2
US$ 57.251%
3
Congratulations! You got a great price!
Add to cart Added
Checkout
Free shipping on orders over US$ 200
Buy more items from this warehouse and get free shipping!
Options
Brand
Model
EDA100
Unit of Measure
Each
Barcode
853016001208
Electroline Manufacturer Warranty
Description

The EDA Mini series are the most compact versions in the Electroline offering. These compact versions offer the same performance and standards compliance as all other versions in the EDA family, which operators have consistently relied on since the first gallium arsenide (GaAs) chips were pioneered by Electroline. Fully compatible with all signal formats, both analog and digital, the EDA Mini series offers a low-noise figure (3 dB) and very flat amplification of the downstream, with a passive upstream. Includes a 15VDC 200mA power supply inserter that provides greater flexibility when installing the EDA Mini and can result in configurations that may reduce the amount of coaxial cable required or offer a more discrete and aesthetic installation. Each home has a different set of devices and a different home wiring configuration. The EDA100 one-port drop amplifier is best used in homes where a 15-dB gain is sufficient to provide good signal levels to all the subscriber’s devices, even when this gain is shared through splitters that are required to service all the devices.

Features and Specifications: Number of ports: 1 Forward gain: 15 dB Return path insertion loss: 1.3 dB Forward passband: 54-1000 MHz Return passband: 5-42 MHz Frequency response flatness: ±0.5 dB Noise figure: 3 dB RFI isolation: 100 dB minimum Surge protection: 6 kV (RF ports and wall adapter) Operating temperature: -40°F to 140°F (-40°C to +60°C).

Shipping specs
Weight
1.12 lbs
Dimensions
10.25" x 0" x 0"
Shipping from
This product is shipped from our supplier's warehouse in Springboro, OH, United States
Our guarantee
This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
A 25% handling charge is levied against all authorized returns except those due to our error. Unauthorized returns are subject to a 40% handling charge. Damages & defects must be reported to us within 14 days.
