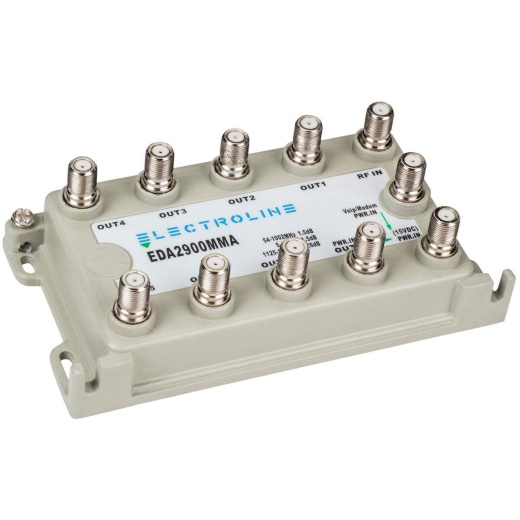

Electroline Eda2900mma 8-Port Rf/Catv Distribution Amplifier

SKU: PXP-182-569
Out of stock
Out of stock
  • Fully supports all Cable TV signals (analog, digital, HD)
  • Additional passive port for VoIP/Modem connection
  • Special internal splitter enable "Whole Home DVR" service
  • Weatherproof housing for indoor or outdoor use
  • SCTE compliant F-connectors
  • 6,000V surge protection
  • Backed by a 5-year warranty
Unit Price
Quantity
US$ 123.38
US$ 142.99
Out of stock
Options
Brand
Model
EDA2900MMA
Unit of Measure
Each
Barcode
853016001925
Electroline Manufacturer Warranty
Description

The EDA2900MMA is perfect for routing cables signals in medium to large sized homes. This model will service up to 8 TV connections, providing a low-noise amplification of the incoming signal. In addition, the “Active Return” amplifies the outgoing signal that originates from your digital set-top box going back to the cable network, ensuring that all the interactive services (On-demand, Pay-per-view, channel listings, etc.) work properly and your TV service is not disrupted.

The internal splitter is specifically designed to pass signals in the 1125-1525 range – which supports the “Whole Home DVR” service, and a special filter ensures the internal signals cannot interfere with the network signals. Power supply included.

Specifications: Number of ports: 8 • Forward gain: 0 - 3 dB • Return path insertion loss: 3.5 dB • Forward passband: 54-1000 MHz • Return passband: 5-1002 MHz • Frequency response flatness: ±1 dB • Noise figure: 3 dB • RFI isolation: -100 dB minimum • Surge protection: 6 kV (RF ports and wall adapter) • Operating temperature: -40°F to 140°F (-40°C to +60°C).

Shipping specs
Weight
1.6 lbs
Dimensions
11" x 0" x 0"
Shipping from
This product is shipped from our supplier's warehouse in Springboro, OH, United States
Our guarantee
This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
A 25% handling charge is levied against all authorized returns except those due to our error. Unauthorized returns are subject to a 40% handling charge. Damages & defects must be reported to us within 14 days.
