Tymphany's NE Series full-range drivers feature an innovative sculpted, open cast aluminum basket design that minimizes internal acoustic reflections and acts as the neodymium motor's heatsink.

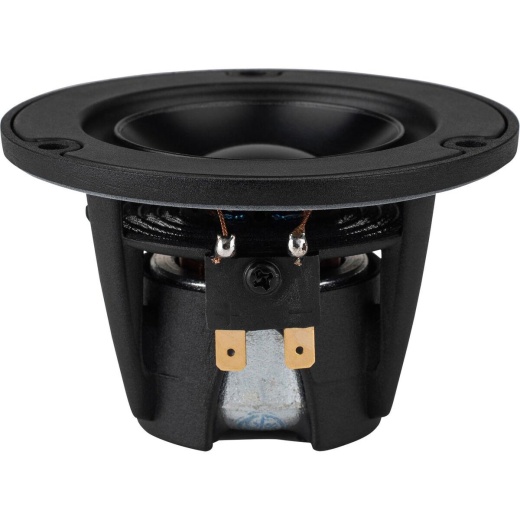

Peerless By Tymphany Ne85w-04 2-1/2" Full Range Woofer
SKU: PXP-264-1052
Out of stock
Out of stock
- Cast aluminum frame acts as a heatsink
- Sculpted design promotes cooling and reduces reflections
- High-strength compact neodymium motor
- Aluminum cone with half-roll rubber surround
- Long-throw voice coil on titanium former
- Copper pole piece cap for extended HF response
- 4 ohm nominal impedance
Options
Brand
Impedance
4Ω
Sensitivity
82.7dB 2.83V/1m
Depth
2.02"
Nominal diameter
2-1/2"
DC resistance (Re)
3.7Ω
Model
NE85W-04
Unit of Measure
Each
Power Handling (RMS)
20 Watts
Power Handling (MAX)
40 Watts
Voice Coil Diameter
1"
Resonant Frequency (Fs)
105Hz
Voice Coil Inductance (Le)
0.06mH
Mechanical Q (Qms)
8.5
Electromagnetic Q (Qes)
0.69
Total Q (Qts)
0.64
Compliance Equivalent Volume (Vas)
0.03ft³
Mechanical Compliance of Suspension (Cms)
1.07mm/N
BL Product (BL)
2.75T·m
Maximum Linear Excursion (Xmax)
1.75mm
Surface Area of Cone (Sd)
22.1cm²
Cone Material
Aluminum
Surround Material
Rubber
Basket / Frame Material
Cast Aluminum
Magnet Material
Neodymium
Overall Outside Diameter
3.35"
Baffle Cutout Diameter
2.25"
# Mounting Holes
3
Sealed Volume
0.04ft³
Sealed F3
131.6Hz
Vented Volume
0.06ft³
Vented F3
81.5Hz
Voice Coil Former
Titanium
Diaphragm Mass Inc. Airload (Mms)
2.16g
Frequency Response
100 to 20,000Hz
Barcode
844632083877
Tymphany NE85W-04 Specifications
