Morel's SCM634 Supreme Coppersleeve Midrange neodymium/ferrite hybrid motor structure is combined with a cutting-edge cast alloy chassis for maximum performance.

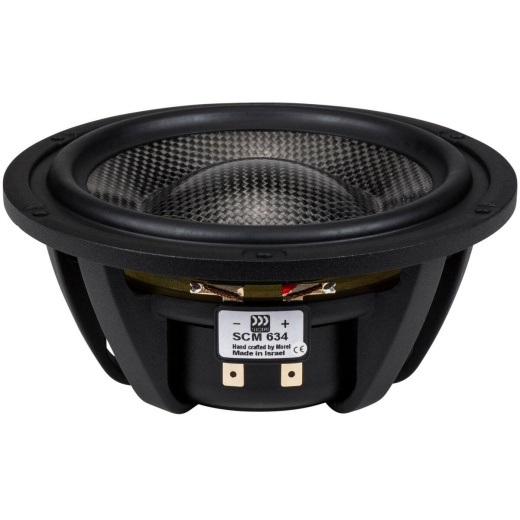

Morel Scm 634 Supreme 6" Midrange
SKU: PXP-287-036
Out of stock
Out of stock
- Carbon fiber/Rohacell/carbon fiber composite sandwich cone
- 3" Hexatech™ aluminum underhung voice coil
- Copper pole piece sleeve reduces inductance
- Hybrid™ neodymium/ferrite magnet
- Uniflow™ aluminum diecast chassis
- High power handling
Options
Brand
Impedance
4Ω
Sensitivity
89dB 2.83V/1m
Depth
2.71"
Nominal diameter
6"
DC resistance (Re)
3.3Ω
Model
SCM 634
Unit of Measure
Each
Power Handling (RMS)
150 Watts
Power Handling (MAX)
300 Watts
Voice Coil Diameter
3"
Resonant Frequency (Fs)
49Hz
Voice Coil Inductance (Le)
0.12mH
Mechanical Q (Qms)
1.32
Electromagnetic Q (Qes)
0.59
Total Q (Qts)
0.4
Compliance Equivalent Volume (Vas)
0.49ft³
Mechanical Compliance of Suspension (Cms)
0.73mm/N
Maximum Linear Excursion (Xmax)
5.25mm
Surface Area of Cone (Sd)
119cm²
Cone Material
Carbon Fiber Composite
Magnet Material
Ferrite
Overall Outside Diameter
6.3"
Baffle Cutout Diameter
5.51"
# Mounting Holes
6
Sealed Volume
0.25ft³
Sealed F3
69.3Hz
Vented Volume
0.5ft³
Vented F3
48.2Hz
Voice Coil Former
Aluminum
Voice Coil Wire Material
Aluminum
Diaphragm Mass Inc. Airload (Mms)
14.5g
Frequency Response
40 to 5,000Hz
Barcode
844632070822
Morel SCM 634 Specifications
Morel Manufacturer Warranty
