For high fidelity applications, choose FaitalPRO's 5FE120 5" professional woofer. Decent Xmax and high frequency extension are complimented by a low distortion motor.

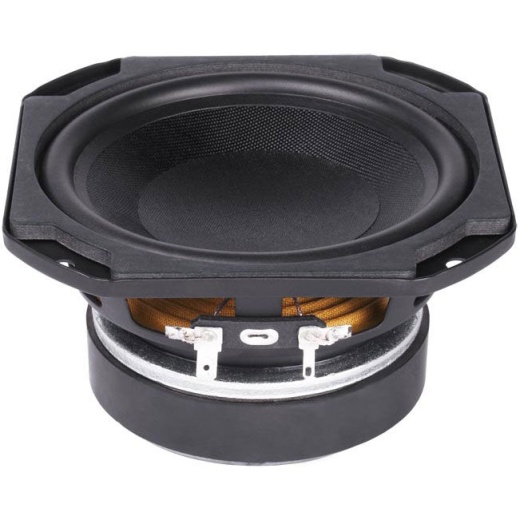

Faitalpro 5Fe120 5" Professional Midbass Midrange Woofer 8 Ohm
SKU: PXP-294-1141
Out of stock
Out of stock
- Aluminum demodulation ring for low distortion
- Rubber surround and treated paper cone for durability
- Over 5 mm of Xmax and under 0.5 mH inductance
Options
Brand
Impedance
8Ω
Sensitivity
88dB 2.83V/1m
Depth
2.81"
Nominal diameter
5"
DC resistance (Re)
5.4Ω
Model
5FE120
Unit of Measure
Each
Power Handling (RMS)
80 Watts
Power Handling (MAX)
160 Watts
Voice Coil Diameter
1.26"
Resonant Frequency (Fs)
65Hz
Voice Coil Inductance (Le)
0.41mH
Mechanical Q (Qms)
7.35
Electromagnetic Q (Qes)
0.51
Total Q (Qts)
0.47
Compliance Equivalent Volume (Vas)
0.17ft³
Mechanical Compliance of Suspension (Cms)
0.55mm/N
BL Product (BL)
6.9T·m
Maximum Linear Excursion (Xmax)
5.25mm
Surface Area of Cone (Sd)
79.8cm²
Cone Material
Treated Paper
Surround Material
Rubber
Basket / Frame Material
Steel
Magnet Material
Ferrite
Overall Outside Diameter
4.9" across the flats, 5.7"
Baffle Cutout Diameter
4.41"
# Mounting Holes
4
Sealed Volume
0.1ft³
Sealed F3
109.5Hz
Vented Volume
0.16ft³
Vented F3
64.1Hz
Voice Coil Former
Kapton® / Polyimide
Bolt Circle Diameter
5.24
Voice Coil Wire Material
Copper
Diaphragm Mass Inc. Airload (Mms)
11g
Frequency Response
63 to 6,000Hz
Barcode
848864011042
