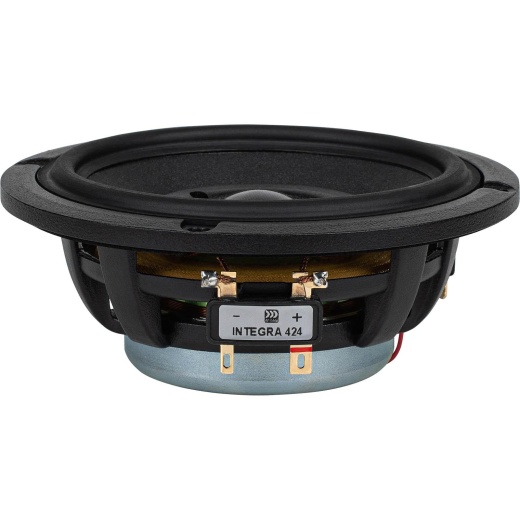

Morel Integra 424 Hybrid Series 4" Point Source Coaxial Full-Range

SKU: PXP-297-024
  • Time aligned woofer and tweeter configuration minimizes off axis anomalies
  • 1.1" Accuflex™ soft dome tweeter produces little distortion even at high output
  • Huge 2.1" Hexatech™ voice coil is driven by a powerful hybrid neodymium/ferrite motor
  • Uniflow™ frame allows ample airflow to minimize compression and cool the voice coils
Unit Price
Quantity
Subtotal
US$ 226.88
US$ 268.99
US$ 226.88
US$ 268.99
US$ 225.521%
2
US$ 224.721%
3
Congratulations! You got a great price!
Add to cart Added
Checkout
Free shipping on orders over US$ 200
Buy more items from this warehouse and get free shipping!
Options
Brand
Impedance
Model
Integra 424
Unit of Measure
Each
Power Handling (RMS)
60 Watts
Barcode
848864043630
Morel Integra 424 Specifications
Morel Manufacturer Warranty
Description

Morel's Integra 424 4" coaxial driver is unlike any other coaxial driver. By using a large voice coil on the woofer, Morel was able to mount the 1.1" Accuflex™ soft dome tweeter concentrically within the woofer cone. This results in minimal phase errors compared to conventional coaxial designs and allows the combined response to be ideal in all directions resulting from the near perfect time-alignment.

The Integra 424 features a large 28 mm Acuflex™ soft dome tweeter. Morel's innovative Acuflex™ is a specially engineered damping compound that allows for controlled accurate flexing, meaning each break-up mode is counteracted by another in the opposite direction. This action allows for the natural pure sound that has made Morel tweeters famous. The woofer uses a large 2.1" Hexatech™ aluminum voice coil to drive the low profile composite paper cone that excels in both on and off axis response.

The motor designed for the Integra 424 driver is an unconventional, innovative and highly effective Hybrid™ magnet system that uses a ferrite magnet together with a very powerful neodymium magnet. Combined they create a compact, lightweight motor system that is up to four times more powerful than conventional designs of the same size.

Specifications (Woofer): • Power handling: 60 watts RMS/500 watts max • VC dia: 2.1" • Le: 0.15 mH • Impedance: 4 ohms • Re: 3.0 ohms • Frequency response: 100-6,500 Hz • Fs: 120 Hz • SPL: 88 dB 2.83V/1m • Vas: 0.07 cu. ft. • Qms: 2.47 • Qes: 0.6 • Qts: 0.48 • Xmax: 3 mm.

Specifications (Tweeter): • Power handling: 60 watts RMS/200 watts max (with recommended crossover of 2,500 Hz/12 dB slope) • VCdia: 1.1" • Le: 0.24 mH • Impedance: 4 ohms • Re: 3.5 ohms • Frequency response: 2,200-20,000 Hz • Fs: 1100 Hz • SPL: 89 dB 2.83V/1m.

Shipping specs
Weight
1.45 lbs
Dimensions
6" x 0" x 1.97"
Shipping from
This product is shipped from our supplier's warehouse in Springboro, OH, United States
Our guarantee
This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
A 25% handling charge is levied against all authorized returns except those due to our error. Unauthorized returns are subject to a 40% handling charge. Damages & defects must be reported to us within 14 days.
