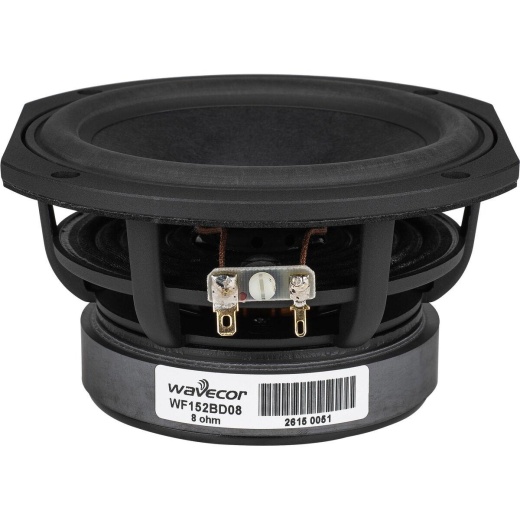

Wavecor Wf152bd08 6" Balanced Drive Paper/Glass Fiber Cone Mid-Woofer With Truncated Frame 8 Ohm

SKU: PXP-298-1182
  • Balanced Drive motor structure for optimal drive force symmetry resulting in largely reduced even order harmonic distortion
  • Copper cap on center pole to reduce voice coil inductance and to minimize variations in voice coil inductance as a function of voice coil position
  • Built-in aluminum field-stabilizing ring for reduced high-level distortion
  • Large motor structure for better control and power handling
  • Low-loss suspension (high Qm) for better reproduction of details and dynamics
  • Rigid die cast aluminum chassis with extensive venting for lower air flow speed reducing audible distortion
  • Progressive suspension with specially designed conex spider for long durability under extreme operating conditions
Unit Price
Quantity
Subtotal
US$ 204.99
US$ 204.99
US$ 203.761%
2
US$ 203.041%
3
Congratulations! You got a great price!
Add to cart Added
Checkout
Free shipping on orders over US$ 200
Buy more items from this warehouse and get free shipping!
Options
Brand
Wavecor
Impedance
8Ω
Model
WF152BD08
Unit of Measure
Each
Power Handling (RMS)
70 Watts
Barcode
848864054926
Wavecor WF152BD08 Specifications
Wavecor WF152BD08 Specifications.pdf
(0.49MB)
Wavecor Manufacturer Warranty
Wavecor Manufacturer Warranty.pdf
(0.01MB)
Description

The Wavecor WF152BD08 is a 6" paper/glass fiber cone midwoofer with a truncated frame that is designed for demanding bass and midrange applications. This driver is powered by a large magnet structure that ensures good efficiency. The WF152BD08 is a very good choices for 2-way speaker systems or even as midrange in 3-way systems.

The large motor system with 1-1/4" voice coil diameter and large magnet for better control, power handling, and efficiency. The optimized paper/glass fiber cone ensures wide bandwidth and low distortion. Distortion is further reduced by efficient venting of the chassis and voice coil former.

Shipping specs
Weight
3.55 lbs
Dimensions
8" x 0" x 2.95"
Shipping from
This product is shipped from our supplier's warehouse in Springboro, OH, United States
Our guarantee
This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
A 25% handling charge is levied against all authorized returns except those due to our error. Unauthorized returns are subject to a 40% handling charge. Damages & defects must be reported to us within 14 days.
