The Wavecor WF223BD01 is an 8-3/4" paper/glass fiber cone midwoofer that utilizes balanced drive technology and is designed for demanding bass and midrange applications. The WF223BD01 is a very good choices for either 2 or 3-way speaker systems.

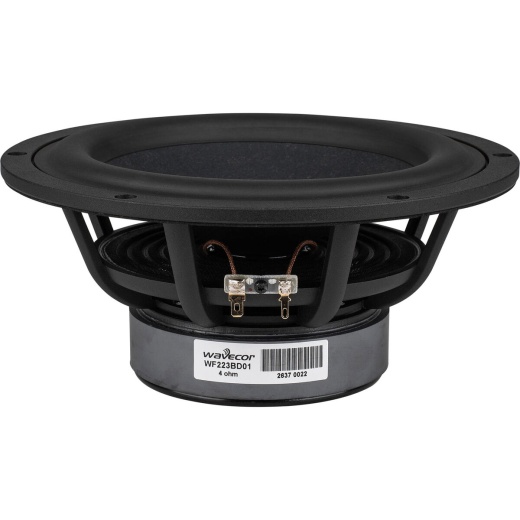

Wavecor Wf223bd01 8-3/4" Balanced Drive Paper/Glass Fiber Cone Mid-Woofer 4 Ohm
SKU: PXP-298-1212
Out of stock
Out of stock
- Vented voice coil former for reduced distortion and compression
- Balanced Drive motor structure for optimal drive force symmetry resulting in largely reduced 2nd order harmonic distortion
- Built-in aluminum field-stabilizing ring for reduced high-level distortion
- Large motor structure for better control and power handling
- Copper cap on center pole to reduce voice coil inductance and to minimize variations in voice coil inductance as a function of voice coil position
- New vented chassis for lower air flow speed reducing audible distortion
- Progressive suspension with specially designed conex spider for long durability under extreme operating conditions
Options
Brand
Impedance
4Ω
Sensitivity
89.5dB 2.83V/1m
Depth
3.78"
Nominal diameter
8"
DC resistance (Re)
3.4Ω
Model
WF223BD01
Unit of Measure
Each
Power Handling (RMS)
300 Watts
Power Handling (MAX)
1200 Watts
Voice Coil Diameter
1.54"
Resonant Frequency (Fs)
32.6Hz
Voice Coil Inductance (Le)
0.13mH
Mechanical Q (Qms)
14.5
Electromagnetic Q (Qes)
0.4
Total Q (Qts)
0.39
Compliance Equivalent Volume (Vas)
1.59ft³
Mechanical Compliance of Suspension (Cms)
0.7mm/N
BL Product (BL)
7.7T·m
Maximum Linear Excursion (Xmax)
6.5mm
Surface Area of Cone (Sd)
213cm²
Cone Material
Paper / Glass Fiber
Basket / Frame Material
Cast Aluminum
Overall Outside Diameter
8.80"
Baffle Cutout Diameter
7.52"
# Mounting Holes
6
Sealed Volume
0.5ft³
Sealed F3
66.4Hz
Vented Volume
1.25ft³
Vented F3
35.5Hz
Voice Coil Former
Fiberglass
Voice Coil Wire Material
Copper
Diaphragm Mass Inc. Airload (Mms)
34g
Frequency Response
32 to 2,000Hz
Barcode
848864055077
