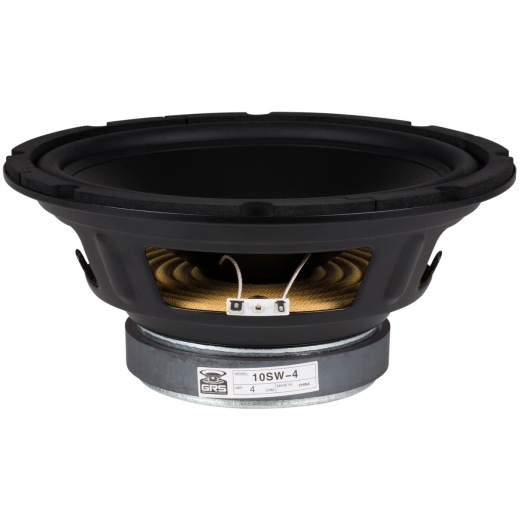

The GRS 10SW-4 10" 4 ohm poly cone subwoofers are a true bargain in replacement subwoofers! These economical subs feature a large diameter voice coil, durable polypropylene cone, and extended excursion for high energy bass reproduction.
Grs 10Sw-4 10" Poly Cone Subwoofer 4 Ohm
SKU: PXP-292-482
- Butyl rubber surround ensures high excursion and long-term durability
- Polypropylene cone for perfect balance of stiffness, mass, and self-damping
- Long-throw design for deep, powerful bass
- Large 2" voice coil and bumped back plate enable high power handling
Unit Price
Quantity
Subtotal
US$ 36.12
US$ 38.99
US$ 36.12
US$ 38.99
US$ 35.901%
2
US$ 35.781%
3
Options
Brand
Impedance
4Ω
Sensitivity
88dB 2.83V/1m
Depth
5"
Nominal diameter
10"
DC resistance (Re)
3.96Ω
Model
10SW-4
Unit of Measure
Each
Power Handling (RMS)
120 Watts
Power Handling (MAX)
240 Watts
Voice Coil Diameter
2"
Resonant Frequency (Fs)
47Hz
Voice Coil Inductance (Le)
0.44mH
Mechanical Q (Qms)
2.83
Electromagnetic Q (Qes)
1.098
Total Q (Qts)
0.79
Compliance Equivalent Volume (Vas)
0.794ft³
Mechanical Compliance of Suspension (Cms)
0.133mm/N
BL Product (BL)
9.5T·m
Maximum Linear Excursion (Xmax)
8.5mm
Surface Area of Cone (Sd)
344.5cm²
Cone Material
Poly
Surround Material
Rubber
Basket / Frame Material
Steel
Magnet Material
Ferrite
Overall Outside Diameter
10"
Baffle Cutout Diameter
9"
# Mounting Holes
8
Sealed Volume
1ft³
Sealed F3
51.9Hz
Vented Volume
1.25ft³
Vented F3
38.8Hz
Bolt Circle Diameter
9.5
Voice Coil Wire Material
Copper
Diaphragm Mass Inc. Airload (Mms)
83.45g
Frequency Response
34 to 800Hz
Barcode
848864020204
GRS Manufacturer Warranty
Description
Shipping specs
Shipping from
This product is shipped from our supplier's warehouse in Springboro, OH, United States
Our guarantee
This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
A 25% handling charge is levied against all authorized returns except those due to our error. Unauthorized returns are subject to a 40% handling charge. Damages & defects must be reported to us within 14 days.
