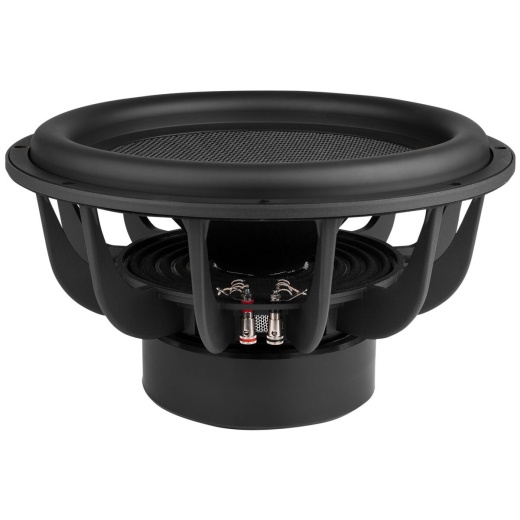

Dayton Audio Um15-22 15" Ultimax Dvc Subwoofer 2 Ohms Per Coil

SKU: PXP-295-514
  • Sweeps massive amounts of air!
  • Over 1-1/2" of total cone travel
  • 800 watts RMS power handling
  • The latest in subwoofer technology
  • Dual linear stiffness spiders limit distortion and rocking modes
  • Dual 2 ohm, 2-layer copper voice coils
  • Large vented pole piece and under-spider venting
Unit Price
Quantity
Subtotal
US$ 378.29
US$ 378.29
US$ 376.021%
2
US$ 374.691%
3
Congratulations! You got a great price!
Add to cart Added
Checkout
Free shipping on orders over US$ 200
Buy more items from this warehouse and get free shipping!
Options
Brand
Impedance
Model
UM15-22
Unit of Measure
Each
Power Handling (RMS)
800 Watts
Barcode
844632099267
Dayton Audio UM15-22 Specifications
Dayton Audio Manufacturer Warranty
Description
Dayton Audio UM15-22 15" Ultimax DVC SubwooferExperience the Apex of Subwoofer Design

The Ultimax Series of dual voice coil subwoofers, from Dayton Audio, are not for the faint of heart. Built using the latest in subwoofer technology, Ultimax subwoofers are the pinnacle of low frequency driver design. An Ultimax subwoofer tests the strength of your foundation with fast, articulate, gut-wrenching bass.

Key Specs:
  • Nominal Diameter: 15"
  • Power Handling (RMS): 800W
  • Power Handling (MAX): 1,600W
  • Impedance:
  • Frequency Response: 20 - 500 Hz
  • Sensitivity: 89.1 dB 2.83V/1m
  • Voice Coil Diameter: 2.5"
  • Maximum Linear Excursion: 19mm

We've Got Your Back

We stand behind our products and our warranty is a demonstration of our commitment to quality and reliability.

Built To Move Some Air

To improve power handling, increase thermal management, and reduce power compression, Dayton Audio designed the Ultimax Series with large black anodized formers and vented pole pieces, under-spider ventilation, and two-layer copper voice coils.

Over 1-1/2" of travel (3/4" Xmax) is kept completely linear through the use of dual spiders that also limit distortion and rocking modes. "Tall-boy" rubber surrounds with integrated gaskets maintain driver surface area during extreme excursion moments. Thick, one-piece Nomex honeycomb covered cones are covered with woven, heavy-duty glass fibers creating ultra-still cones that resist deformation.

Industry Leading Motor Strength

A large copper sleeve and copper pole cap in the motor reduce energy storage from inductance, with the side benefit of lowering distortion for "faster" response. Large dual-stacked, high-energy magnets handle the heavy lifting and bring Qts down to a level where Ultimax subwoofers can be used in vented or sealed cabinets and enclosures.

Unmatched Versatility

Dual 2 ohm voice coils allow for stereo 2 ohm and mono 1 ohm wiring configurations when connecting to high current car audio and professional audio amplifiers to extract maximum power. For home audio applications, simply wire the voice coils in series for a benign 4 ohm load for greater amplifier compatibility.

Feel Maximum Power On The Road

The Ultimax UM15-22 15" Subwoofer delivers more than enough power to rock the road ways. The sub is a perfect pick to add massive low end to your mobile audio speaker build. If you are looking for fast, articulate bass that really fills your car, look no further than the UM15-22.

Build Your Own Personal Cinema

Build by Nikolai L.

Not only is the UM15-22 great for car audio, it fits perfectly at home in your theater or listening room. The detailed response and low end strength lets you feel the rumble in your movies and gives you a concert-like music listening experience.

Cabinet Recommendations:
  • Sealed: 3.8 cubic ft. (net internal, not including driver volume) with 3 lbs. of Acousta-Stuf polyfill produces an f3 of 34 Hz with a 0.83 Qtc alignment
  • Vented: 4.5 cubic ft. (net internal, not including driver or port volume) produces an f3 of 24 Hz. Larger cabinets and lower tuning frequencies are possible.

Build by Aaron W.

Shop the Whole Ultimax Series

UM18-22 18"

Nominal Diameter: 18"
Frequency Response: 19-500Hz

UM12-22 12"

Nominal Diameter: 12"
Frequency Response: 20-1,000Hz

UM10-22 10"

Nominal Diameter: 10"
Frequency Response: 25-1,000Hz

UM8-22 8"

Nominal Diameter: 8"
Frequency Response: 30-800Hz

The Dayton Audio UM15-22 Is Used In The Following Kits Dayton Audio 15" Ultimax Subwoofer and Cabinet Bundle

Build one of the most powerful subwoofers you'll ever experience using this precision-cut, CNC-machined subwoofer cabinet and the Dayton Audio UM15-22 15" subwoofer. Save over $30 off the original retail price when you order this bundle

Additional Resources

We pride ourselves on being an authority in the speaker building and DIY community. With over 60 years of combined engineering experience, our team of engineers is here to help with your build. Below are some useful tools to get you started.

Shipping specs
Weight
35.3 lbs
Dimensions
20.25" x 0" x 7.55"
Shipping from
This product is shipped from our supplier's warehouse in Springboro, OH, United States
Our guarantee
This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
A 25% handling charge is levied against all authorized returns except those due to our error. Unauthorized returns are subject to a 40% handling charge. Damages & defects must be reported to us within 14 days.
