Experience the Apex of Subwoofer Design
The Ultimax Series of dual voice coil subwoofers, from Dayton Audio, are not for the faint of heart. Built using the latest in subwoofer technology, Ultimax subwoofers are the pinnacle of low frequency driver design. An Ultimax subwoofer tests the strength of your foundation with fast, articulate, gut-wrenching bass.
Key Specs
Nominal Diameter: 10"; Power Handling (RMS): 500W; Power Handling (MAX): 1000W; Impedance: Dual Voice Coil, 2 Ω + 2 Ω; Frequency Response: 20 - 800 Hz; Sensitivity: 83.6 dB 2.83V/1m; Voice Coil Diameter: 2.5"; Maximum Linear Excursion: 19mm
Industry Leading Motor Strength
A large copper sleeve and copper pole cap in the motor reduce energy storage from inductance, with the side benefit of lowering distortion for "faster" response. Large dual-stacked, high-energy magnets handle the heavy lifting and bring Qts down to a level where Ultimax subwoofers can be used in vented or sealed cabinets and enclosures.
Unmatched Versatility
Dual 2 ohm voice coils allow for stereo 2 ohm and mono 1 ohm wiring configurations when connecting to high current car audio and professional audio amplifiers to extract maximum power. For home audio applications, simply wire the voice coils in series for a benign 4 ohm load for greater amplifier compatibility.
Feel the Power

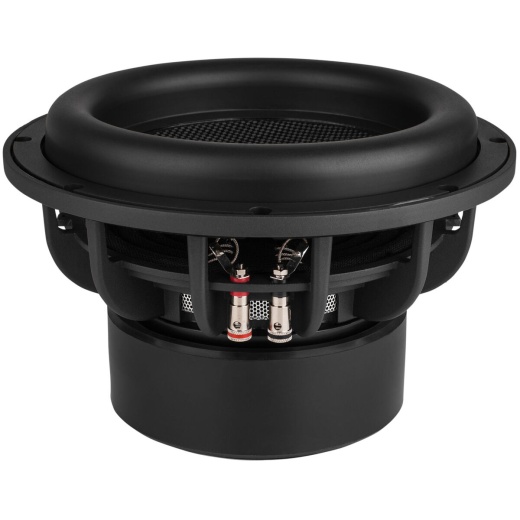

Whether you're building a mobile audio system or a home theater, the Dayton Audio UM10-22 10" Ultimax DVC Subwoofer delivers more than enough power to rock the road ways or shake your living room. The sub is a perfect pick to add massive low end to your audio system.
