The 30N18AL04 3/4" aluminum cone full-range driver from Tymphany is purpose-built for computer, television, micro array, and similar modern audio applications.

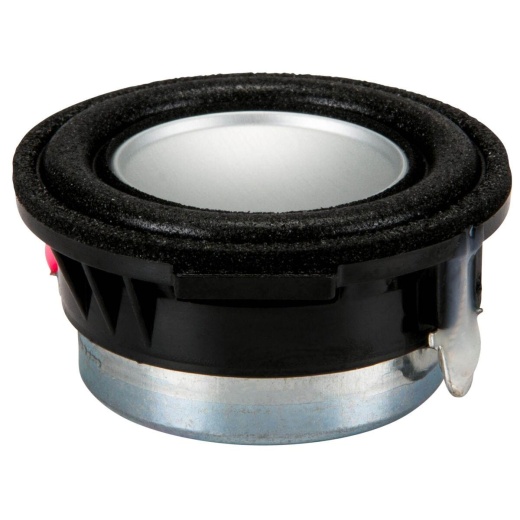

Peerless By Tymphany Pmt Series 30N18al04 3/4" Aluminum Dome Micro Full Range Speaker 4 Ohm
SKU: PXP-264-1153
Out of stock
Out of stock
- Flat, controlled frequency response from 300 Hz to 14,000 Hz
- Designed for use as a mini full-range speaker or for line arrays when used in groups
- Screwless, press-fit, polymer frame
- Very low resonant frequency and Qts specifications, especially for a 3/4" driver!
Options
Brand
Impedance
4Ω
Sensitivity
81.6dB 2.83V/1m
Depth
0.59"
Nominal diameter
1"
DC resistance (Re)
3.5Ω
Model
PMT-30N18AL04-04
Unit of Measure
Each
Power Handling (RMS)
1.5 Watts
Power Handling (MAX)
3 Watts
Voice Coil Diameter
0.71"
Resonant Frequency (Fs)
223Hz
Voice Coil Inductance (Le)
0.06mH
Mechanical Q (Qms)
2.3
Electromagnetic Q (Qes)
0.86
Total Q (Qts)
0.62
Compliance Equivalent Volume (Vas)
0.01ft³
Mechanical Compliance of Suspension (Cms)
85.16mm/N
BL Product (BL)
1.86T·m
Maximum Linear Excursion (Xmax)
1.95mm
Surface Area of Cone (Sd)
4.9cm²
Cone Material
Aluminum
Surround Material
Foam
Basket / Frame Material
Polymer
Overall Outside Diameter
1.34"
Baffle Cutout Diameter
1.24"
Sealed Volume
0.0108ft³
Sealed F3
332Hz
Vented Volume
0.0239ft³
Vented F3
117.9Hz
Diaphragm Mass Inc. Airload (Mms)
0.59g
Frequency Response
223 to 20,000Hz
Barcode
848864014913
Tymphany PMT-30N18AL04-04 Specifications
