Choose Celestion's AN3510 3" full-range compact array driver for portable, live sound line array speaker applications. Weather resistant, you can use these indoors or outside while occupying minimal space.

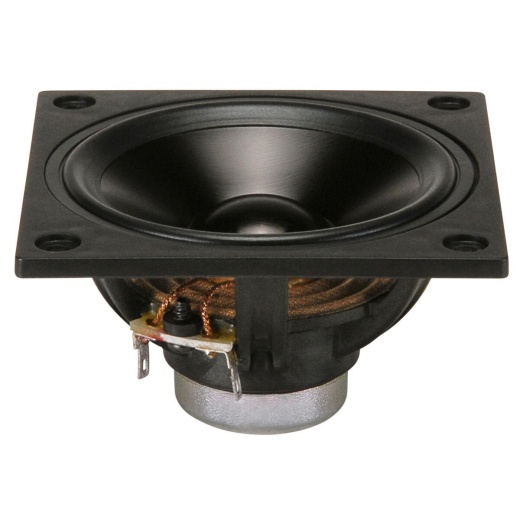

Celestion An3510 3" Full-Range Compact Array Driver
SKU: PXP-294-2048
- Lightweight, full-range neodymium speakers
- Ideal for applications where actively controlled beam steering is used
- Delivers wider dispersion than many equivalent full-range drivers on the market
- Stiff and light aluminum cone remains rigid to higher frequencies, delivering a smoother response in the critical listening band
- Designed to be weather resistant for outdoor applications
Unit Price
Quantity
Subtotal
US$ 59.63
US$ 59.63
US$ 59.271%
2
US$ 59.061%
3
Options
Brand
Impedance
8Ω
Sensitivity
87dB 2.83V/1m
Depth
2"
Nominal diameter
3-1/2"
DC resistance (Re)
5.73Ω
Model
AN3510
Unit of Measure
Each
Power Handling (RMS)
35 Watts
Power Handling (MAX)
70 Watts
Voice Coil Diameter
1"
Resonant Frequency (Fs)
113.4Hz
Mechanical Q (Qms)
5.09
Electromagnetic Q (Qes)
0.74
Total Q (Qts)
0.65
Compliance Equivalent Volume (Vas)
0.07ft³
Mechanical Compliance of Suspension (Cms)
0.52mm/N
BL Product (BL)
4.56T·m
Maximum Linear Excursion (Xmax)
1.25mm
Surface Area of Cone (Sd)
38.48cm²
Cone Material
Aluminum
Surround Material
Rubber
Basket / Frame Material
Polymer
Magnet Material
Neodymium
Overall Outside Diameter
3.52"
Baffle Cutout Diameter
3.1"
# Mounting Holes
4
Sealed Volume
0.07ft³
Sealed F3
143.2Hz
Vented Volume
0.1ft³
Vented F3
93.4Hz
Voice Coil Former
Kapton® / Polyimide
Voice Coil Wire Material
Copper
Diaphragm Mass Inc. Airload (Mms)
3.37g
Frequency Response
98 to 18,500Hz
Barcode
739894580144
Celestion AN3510 Specifications
