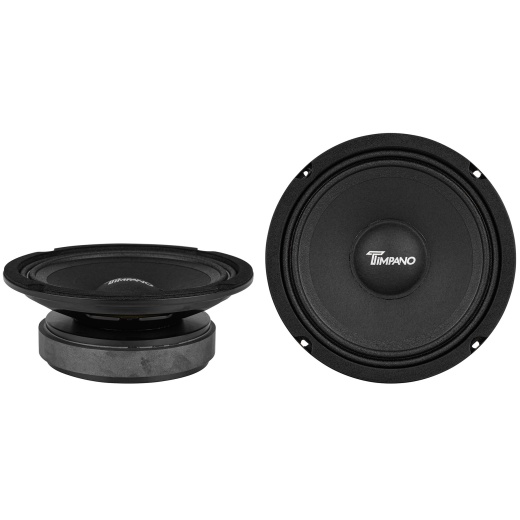

Timpano Audio's TPT-MR6-4 Slim 6-1/2" midrange driver provides remarkably smooth response in the vocal region even at high SPL. With a high Q and a mounting depth of just under 2-1/4", this driver is idea for use in low profile installations, such as car doors. Capable of handling 100 watts RMS and with a sensitivity of 94 dB, the TPT-MR6-4 Slim is designed to deliver continuous high SPL output.
Timpano Audio Tpt-Mr6-4 Slim 6-1/2" Midrange Speaker 4 Ohm
SKU: PXP-294-3306
Out of stock
Out of stock
- 94 dB sensitivity to provide high SPL when needed
- Only 2.22" deep for installations where space is at a premium
- Naturally damped cone for natural vocal reproduction and flat response
- Vented pole piece keeps voice coil cool for continuous high output
Options
Brand
Impedance
4Ω
Sensitivity
94dB 2.83V/1m
Depth
2.22"
Nominal diameter
6-1/2"
DC resistance (Re)
3.3Ω
Model
TPT-MR6-4 Slim
Unit of Measure
Each
Power Handling (RMS)
100 Watts
Power Handling (MAX)
200 Watts
Voice Coil Diameter
1.5"
Resonant Frequency (Fs)
142.3Hz
Mechanical Q (Qms)
10.6
Electromagnetic Q (Qes)
0.85
Total Q (Qts)
0.79
Compliance Equivalent Volume (Vas)
0.13ft³
Mechanical Compliance of Suspension (Cms)
0.13mm/N
BL Product (BL)
5.8T·m
Surface Area of Cone (Sd)
143cm²
Cone Material
Paper
Surround Material
Cloth
Basket / Frame Material
Steel
Magnet Material
Ferrite
Baffle Cutout Diameter
5.65"
# Mounting Holes
4
Sealed Volume
0.3ft³
Sealed F3
149.4Hz
Vented Volume
0.5ft³
Vented F3
106Hz
Diaphragm Mass Inc. Airload (Mms)
9.6g
Frequency Response
95 to 6,500Hz
Barcode
611056239025
