Bronze/aluminum alloy cones, rubber surrounds, cosmetic steel frames, and shielded motor structures are the distinguishing features of HiVi's B Series full-range speakers.

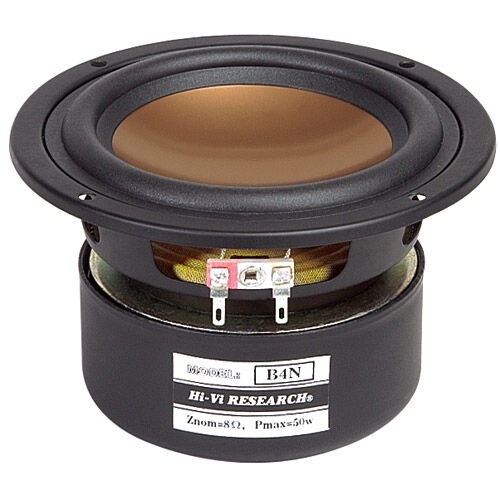

Hivi B4n 4" Aluminum Round Frame Midbass
SKU: PXP-297-429
Out of stock
Out of stock
- Capable of covering a wide portion of the audio spectrum
- Magnetically shielded design allows use in center channel and other multimedia applications
Options
Brand
Impedance
8Ω
Sensitivity
85dB 2.83V/1m
Depth
2.85"
Nominal diameter
4"
DC resistance (Re)
6.5Ω
Model
B4N
Unit of Measure
Each
Power Handling (RMS)
25 Watts
Power Handling (MAX)
50 Watts
Voice Coil Diameter
1"
Resonant Frequency (Fs)
56Hz
Mechanical Q (Qms)
3.91
Electromagnetic Q (Qes)
0.63
Total Q (Qts)
0.52
Compliance Equivalent Volume (Vas)
0.16ft³
Mechanical Compliance of Suspension (Cms)
1.11mm/N
BL Product (BL)
5.1T·m
Maximum Linear Excursion (Xmax)
3.2mm
Surface Area of Cone (Sd)
53cm²
Cone Material
Aluminum / Magnesium
Magnet Material
Ferrite
Overall Outside Diameter
4.59"
Baffle Cutout Diameter
3.66"
# Mounting Holes
4
Sealed Volume
0.15ft³
Sealed F3
85.2Hz
Vented Volume
0.3ft³
Vented F3
46.4Hz
Voice Coil Former
Kapton® / Polyimide
Diaphragm Mass Inc. Airload (Mms)
6.8g
Frequency Response
60 to 4,000Hz
Barcode
844632024979
Exported CLIO Impedance and T/S
Sample Response Graphs
Exported CLIO Frequency Response
Manufacturer's Specifications
HiVi Manufacturer Warranty
Description
