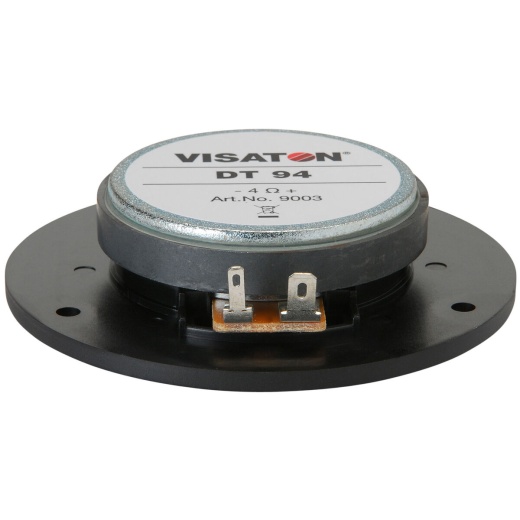

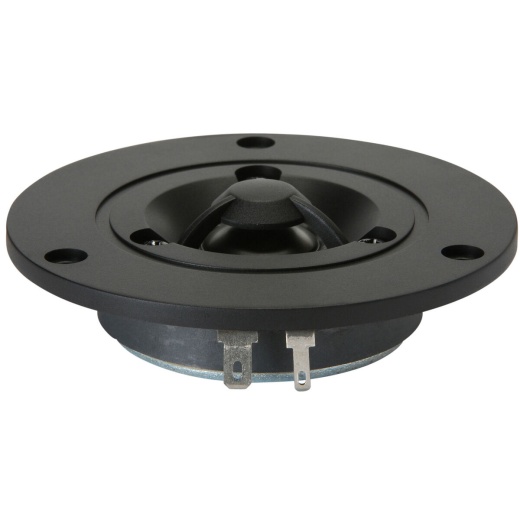

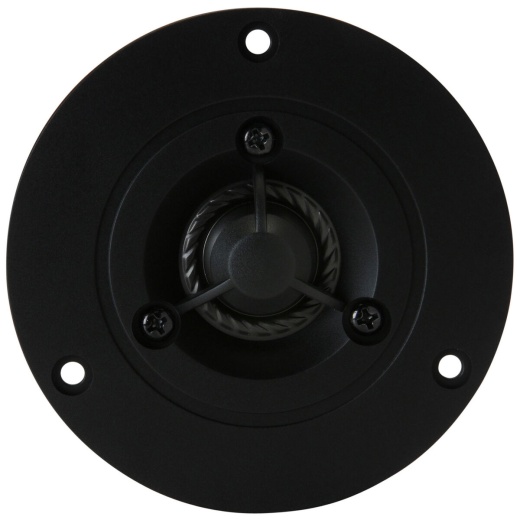

The 9003 DT94 4-ohm, 20 mm polycarbonate dome tweeter from Visaton is designed for high power handling and features smooth frequency response.
Visaton Dt94-4 0.8" Polycarbonate Dome Tweeter 4 Ohm
SKU: PXP-292-554
- 1.2 kHz to 22 kHz frequency response
- Ferrofluid-cooled 4 ohm voice coil
- 90 dB sensitivity
- High power handling
- Wide dispersion pattern
Unit Price
Quantity
Subtotal
US$ 48.63
US$ 49.99
US$ 48.63
US$ 49.99
US$ 48.341%
2
US$ 48.171%
3
Options
Brand
Impedance
4Ω
Sensitivity
90dB 2.83V/1m
Depth
0.75"
DC resistance (Re)
3.1Ω
Model
DT94 - 4
Cutout diameter
2.52
Unit of Measure
Each
Power Handling (RMS)
50 Watts
Resonant Frequency (Fs)
1900Hz
Voice Coil Inductance (Le)
0.09mH
Mechanical Q (Qms)
3
Electromagnetic Q (Qes)
0.6
Total Q (Qts)
0.5
Overall Outside Diameter
3.70"
Cone / Dome Diameter
0.75"
Tweeter Type
Poly / Mylar Dome
Frequency Response
1,200 to 22,000Hz
Visaton 9003 DT94 Dispersion Chart
Visaton 9003 DT94 Frequency Response Chart
Visaton 9003 DT94 Technical Drawing
Visaton Manufacturer Warranty
