For great midrange and woofer performance, try the Eminence Delta-10A 10" speaker. Its hefty 56 oz. magnet, 2-1/2" voice coil, and optimized moving parts are designed to guarantee success!

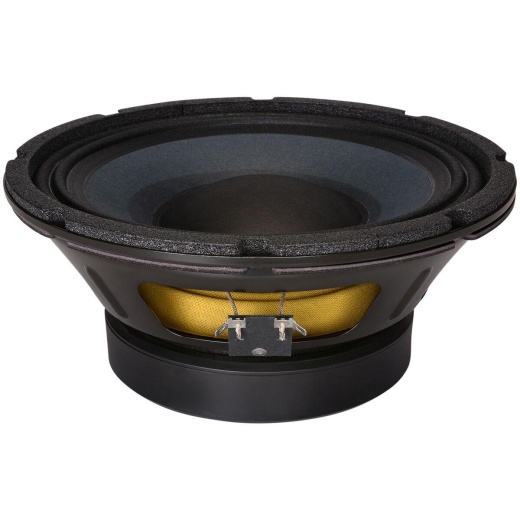

Eminence Delta-10A 10" Midrange Driver 8 Ohm
SKU: PXP-290-412
- 2-1/2" vented voice coil and vented pole piece lowers power compression
- Heat resistant Polyimide voice coil former improves power handling
- Almost 99 dB effeciency ensures high output without alot of power
- Excellent midbass performance in small vented enclosures
Unit Price
Quantity
Subtotal
US$ 209.47
US$ 209.47
US$ 208.211%
2
US$ 207.481%
3
Options
Brand
Impedance
8Ω
Sensitivity
98.8dB 2.83V/1m
Depth
4.25"
Nominal diameter
10"
DC resistance (Re)
5.42Ω
Model
Delta-10A
Unit of Measure
Each
Power Handling (RMS)
350 Watts
Power Handling (MAX)
700 Watts
Voice Coil Diameter
2.5"
Resonant Frequency (Fs)
66Hz
Voice Coil Inductance (Le)
0.74mH
Mechanical Q (Qms)
6.53
Electromagnetic Q (Qes)
0.35
Total Q (Qts)
0.33
Compliance Equivalent Volume (Vas)
1.08ft³
Mechanical Compliance of Suspension (Cms)
0.18mm/N
BL Product (BL)
14.4T·m
Maximum Linear Excursion (Xmax)
3.5mm
Surface Area of Cone (Sd)
344.9cm²
Cone Material
Paper
Surround Material
Cloth
Basket / Frame Material
Steel
Magnet Material
Ferrite
Overall Outside Diameter
10.09"
Baffle Cutout Diameter
9.05"
# Mounting Holes
8
Sealed Volume
0.6ft³
Sealed F3
191Hz
Vented Volume
1ft³
Vented F3
71Hz
Voice Coil Former
Kapton® / Polyimide
Voice Coil Wire Material
Aluminum
Diaphragm Mass Inc. Airload (Mms)
32g
Frequency Response
63 to 3,700Hz
Barcode
876358000203
Eminence Delta 10A Suggested Cabinet Design
Eminence Delta-10A Specifications
Eminence Loudspeaker Selection Guide
Eminence Speaker Manufacturer Warranty
Description
Shipping specs
Shipping from
This product is shipped from our supplier's warehouse in Springboro, OH, United States
Our guarantee
This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
