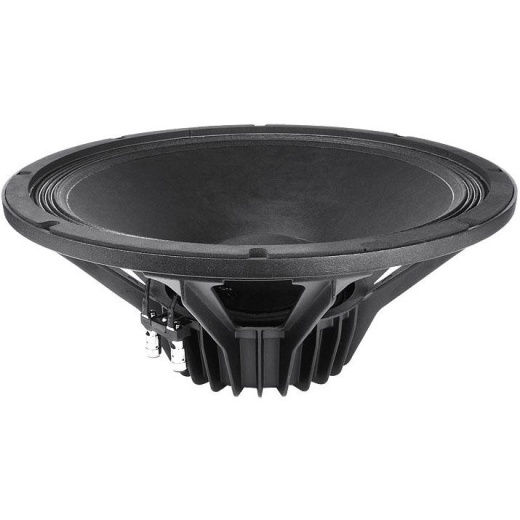

Choose FaitalPRO's 15" 15PR400 woofer to replace or upgrade the woofer in your speaker cabinet. A flat frequency response to 4,000 Hz and high sensitivity of 99 dB (1W/1m) allows it to match well with nearly any horn driver.
Faitalpro 15Pr400 15" Neodymium Professional Woofer 8 Ohm
SKU: PXP-294-1271
Out of stock
Out of stock
- Lightweight design weighs just under 8 pounds
- 99 dB sensitivity due to high-energy neo motor
- Durable cast-aluminum frame
- Ultra-linear frequency response
- Made in Italy
Options
Brand
Impedance
8Ω
Sensitivity
99dB 2.83V/1m
Depth
6.5"
Nominal diameter
15"
DC resistance (Re)
5.1Ω
Model
15PR400
Unit of Measure
Each
Power Handling (RMS)
400 Watts
Power Handling (MAX)
800 Watts
Voice Coil Diameter
3"
Resonant Frequency (Fs)
35Hz
Voice Coil Inductance (Le)
0.75mH
Mechanical Q (Qms)
6.02
Electromagnetic Q (Qes)
0.34
Total Q (Qts)
0.32
Compliance Equivalent Volume (Vas)
7.88ft³
Mechanical Compliance of Suspension (Cms)
0.24mm/N
BL Product (BL)
16.7T·m
Maximum Linear Excursion (Xmax)
5.75mm
Surface Area of Cone (Sd)
805cm²
Cone Material
Treated Paper
Surround Material
Cloth
Basket / Frame Material
Cast Aluminum
Magnet Material
Neodymium
Overall Outside Diameter
15.47"
Baffle Cutout Diameter
13.94"
# Mounting Holes
8
Sealed Volume
1.75ft³
Sealed F3
86.7Hz
Vented Volume
3.25ft³
Vented F3
43.3Hz
Voice Coil Former
Fiberglass
Bolt Circle Diameter
14.72
Voice Coil Wire Material
Aluminum
Diaphragm Mass Inc. Airload (Mms)
85.2g
Frequency Response
35 to 4,000Hz
Barcode
848864008301
