Dayton Audio Ps65lp-4 6-1/2" Ultra Efficient Low Profile Full-Range Driver 4 Ohm

SKU: PXP-295-348
Out of stock
Out of stock
  • Ultra-efficient, high SPL (99 dB @ 2.83V/1m*) high-performance driver
  • Low-profile 2-3/8" mounting depth suitable for car doors or any shallow designs
  • Smooth high frequency roll-off even at 75° off-axis
  • Unique patent-pending bi-conical cone geometry provides high frequency extension and dispersion, as well as cone rigidity
  • Highly damped polypropylene cone controls cone break-up and provides a smooth roll-off

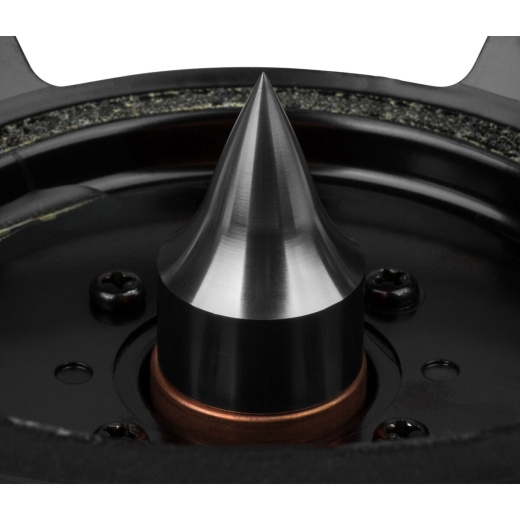

  • Copper cap controls inductance and extends high frequency response
  • Powerful 1.4 Tesla neodymium motor makes this one of the most efficient 6-1/2" car audio speaker on the market!
Unit Price
Quantity
US$ 152.13
Out of stock
Options
Brand
Model
PS65LP-4
Unit of Measure
Each
Power Handling (RMS)
40 Watts
Barcode
848791003776
Dayton Audio PS65LP-4 Specifications
Dayton Audio Manufacturer Warranty
Description

Aside from adding an amplified subwoofer you simply can’t make a better, more cost effective improvement to your factory car stereo than swapping out those mediocre factory speakers for the Dayton Audio PS65LP-4 ultra-efficient 6-1/2" drivers.

Today even the most basic factory audio systems have various other electronic components and systems integrated into the head unit, as a result less consumers are willing to replace the head unit. Not only could you lose certain features but in some cases may end up with electrical problems. Who wants to take out the head unit anyway!

Although the Dayton Audio PS65LP-4 (with 2-3/8" mounting depth, full-range capability, excellent off-axis response and exceptional efficiency) was purposely built for car audio, its parameters and design features serve it well for numerous other applications. Such as, but certainly not limited to: a full-range in-wall/on-wall/ceiling speaker system, a devoted midrange in a ultra-efficient three-way system, or as a great candidate for a folded horn or transmission line design for the class “A" amplifier guys.

The graph below illustrates how the typical bass and treble controls in most stock head units (i.e. center frequencies of 100 Hz and 10,000 Hz) can be used to dramatically flatten the response of the PS65LP-4.


Note: This driver is sold individually.

*Per parameter T/S measurement using Dayton Audio DATS system

Shipping specs
Weight
3.05 lbs
Dimensions
9" x 0" x 0"
Shipping from
This product is shipped from our supplier's warehouse in Springboro, OH, United States
Our guarantee
This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
A 25% handling charge is levied against all authorized returns except those due to our error. Unauthorized returns are subject to a 40% handling charge. Damages & defects must be reported to us within 14 days.
