High-Current Breakaway DC Power Connector for Demanding Applications

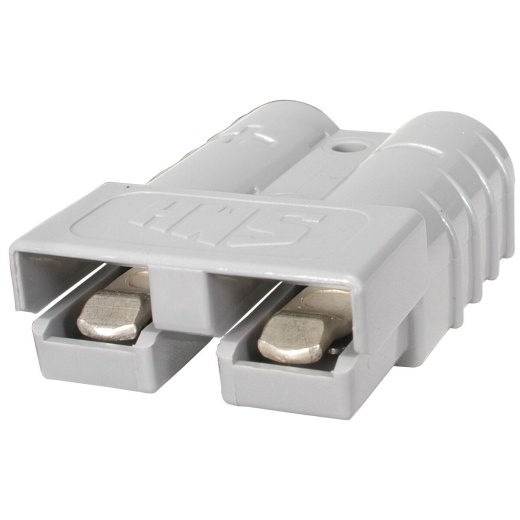

Are you looking for a reliable and high-performance breakaway DC power connector for your car audio amplifier power, RV, or marine applications? Look no further than the SMH SY50 Series 8 AWG 50A Breakaway DC Power Connector. This heavy-duty connector is designed to meet the demanding requirements of high-current DC charging circuits, and is recognized by Underwriters Laboratories for its compatibility with Anderson Power Products SB Series connectors.
Key Features and Benefits
The SMH SY50 Series 8 AWG 50A Breakaway DC Power Connector boasts several key features that make it an ideal choice for a variety of applications. Its impact-resistant polycarbonate housing offers high physical strength and superior dielectric properties, while its silver-plated solid copper contacts provide low resistance for superior conductivity. The self-cleaning contact design resists arcing by keeping conductive surfaces clean and free of corrosion, ensuring a reliable connection every time.
Reliable and Durable
The SMH SY50 Series 8 AWG 50A Breakaway DC Power Connector is built to last, with a rugged design that can withstand the rigors of demanding applications. Its integral stainless steel springs maintain constant pressure on the contact to ensure a consistent, low-resistance connection, and its vibration resistance is excellent. With a maximum wire insulation diameter of 0.44"/11 mm and an average contact retention force of approximately 50 lbs, you can trust this connector to perform.
Easy to Use and Install
The SMH SY50 Series 8 AWG 50A Breakaway DC Power Connector is designed to be easy to use and install, with a simple and intuitive design that makes it easy to mate and unmate the connector. The average mating and unmating force is just 15 lbs (6.75 kg), making it easy to connect and disconnect as needed.
Buy with Confidence
When you buy the SMH SY50 Series 8 AWG 50A Breakaway DC Power Connector, you can have confidence that you're getting a high-quality product that meets or exceeds industry standards. With its UL amperage/voltage rating of 50 amps/600 VDC and its operating temperature range of -20° to 105° C, you can trust this connector to perform in even the most demanding environments.
