Reliable Breakaway DC Power Connector for High-Current Applications
The 8 Awg 50A Breakaway DC Power Connector is designed for high-current applications such as car audio amplifier power, RV, and marine applications. With its impact resistant polycarbonate housing, this connector offers high physical strength and superior dielectric properties. The connector kit is rated at 50A, 600 VDC, making it suitable for demanding applications. The silver-plated solid copper contacts provide low resistance and superior conductivity, ensuring reliable power transmission.
High-Quality Design for Maximum Performance
The self-cleaning contact design resists arcing by keeping conductive surfaces clean and free of corrosion. The contacts have flared and heat treated barrels which readily accept fine stranded wire, making it easy to install and maintain. The connector is CE certified, ensuring it meets international safety standards for reliability and performance.
Easy to Install and Maintain

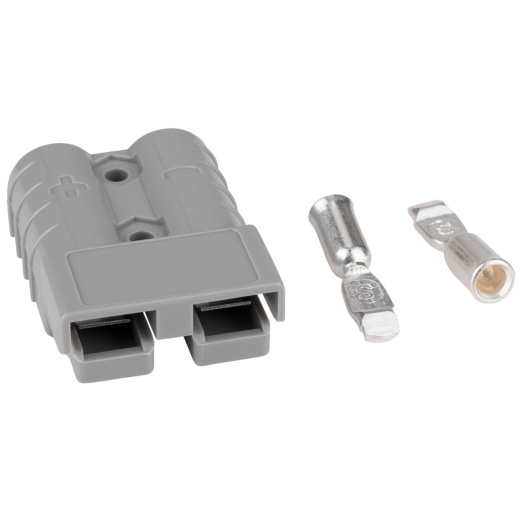

The 8 Awg 50A Breakaway DC Power Connector is easy to install and maintain. The kit includes one housing and two tips (contacts), making it a convenient solution for high-current applications. The connector is designed for disconnect use only, with excellent vibration resistance and high impact resistance.
Technical Specifications
The 8 Awg 50A Breakaway DC Power Connector has the following technical specifications: CE amperage/voltage rating: 50 amps/600 VDC, operating temperature range: -20° to 105° C, current rating: 50 amps on 6 AWG wire produces 30° C rise, insulation withstanding test voltage (volts, dc): 2200dc, maximum wire insulation diameter: 0.44"/11 mm, average contact retention force: approximately 50 lbs., average contact resistance: with 1-1/4" (32 mm) of 6 AWG wire 200 µΩ, vibration resistance: excellent, mating cycles: 10,000, impact resistance: high, environmental restrictions: protected-no hydrocarbon fluids, average mating and unmating force: 15 lbs. (6.75 kg)
Buy with Confidence from Parts Express
When you buy the 8 Awg 50A Breakaway DC Power Connector from Parts Express, you can be confident in the quality and performance of the product. With its reliable design and high-quality materials, this connector is ideal for high-current applications. Buy now and experience the difference for yourself!
