Compact and Portable Power Solution
The Dayton Audio LBB-3v2 compact battery holder board is designed to deliver high current portable power to small amplifiers, 50W amp boards, or other 12 VDC projects. By combining the voltage from three 18650 Li-Ion batteries, this board provides extended listening time on a single charge. Its compact design makes it perfect for use in portable speakers, and its multiple 12 VDC outputs can power an amp, tone control, Bluetooth, and other preamp component boards.
Convenient Charging Solution
The Dayton Audio LBB-3v2 battery holder board features a built-in charge circuit, eliminating the need to remove the batteries from the holder. Simply plug in the 12 VDC power supply, and the over/undercharge circuit prevents correctly installed batteries from overcharging and fully discharging, thus shortening their life.

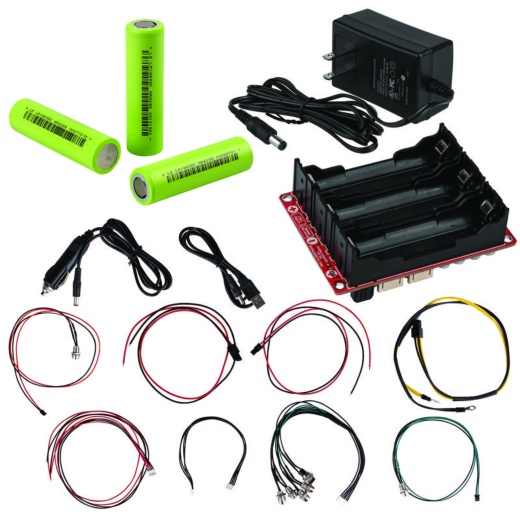

Kit Includes Everything You Need
This LBB-3v2 battery kit includes a 12 VDC AC power supply to start the charging process and to start its output power. The kit also includes a car lighter power supply for charging on the road, allowing you to listen to music while the batteries are charging. Additionally, you can view charging and battery status by pressing the push button on the battery board or by using the included Dayton Audio LBB-5CL push button and LED kit.
Key Features and Specifications
The Dayton Audio LBB-3v2 battery holder board has an output voltage of 12 VDC and requires an input voltage of 5 to 24 VDC at least 2A recommended. The board dimensions are 3.61" W x 2.72" D x 1.34" H (92 x 69 x 34 mm). The AC/DC adapter has an output voltage of 12 VDC @ 2A, an input voltage of 100-240 VAC @ 50/60 Hz, and a DC output cord length of 5 ft. with 2.1 mm x 5.5 mm x 9.5 mm with center positive plug. The Li-Ion batteries have a voltage of 3.7V, a current rating of 2600mAh, and dimensions of 2.56" L x 0.72" Dia. (65 x 18.25 mm).
Buy with Confidence
When you buy the Dayton Audio LBB-3v2 compact battery holder board bundle from Parts Express, you can be confident that you're getting a high-quality product that will meet your power needs. Order now and start enjoying extended listening time on a single charge!
