Plug-and-Play Simplicity
Easy to set up with no special software, apps, or drivers required—just plug it in and start enjoying high-quality audio.

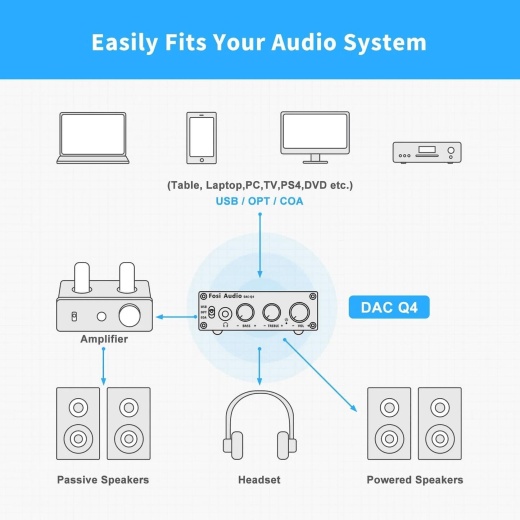

Versatile Input and Output Options
Equipped with USB, optical, and coaxial S/PDIF inputs to suit most home audio setups; RCA output connects to amplifiers or powered speakers on your desktop.
Built-in Hi-Fi Headphone Amplifier
Integrated headphone amp chip supports 16–200Ω headphones, delivering 160mW RMS (32Ω, 20 Hz–20 kHz, 0.01% THD) with bass and treble controls. Can also function as a preamp or volume controller for PC/MAC.
High-Resolution
Digital AudioCompact D/A converter streams bit-perfect 24bit/192kHz HD audio with low jitter, featuring circuit protection for safe integration with premium audio gear.
- PC-USB supports input sampling rate: 24Bit/96kHz
- High and low sound adjustment range: ±6dB
- Fiber/coaxial support input sampling rate: 24Bit/192kHz
- Frequency response: 20Hz-20kHz (±3dB)
- PC-USB support operating system: XP/W7/W8/W10/MAC/Linux
- Distortion: 0.01%
- Signal-to-Noise Ratio (SNR): ≥105dB
- Amp output maximum power: 100mW 32 Ohm load
- Headphone matching impedance: 16-200 Ohms
- Working voltage DC5V
- RCA output level: 2.3V
- Size: 2.89" L x 3.86" W x 1.3" H (without knobs and terminals)
