- Dimensions: 14 x 21 x 38 mm (H x W x L)

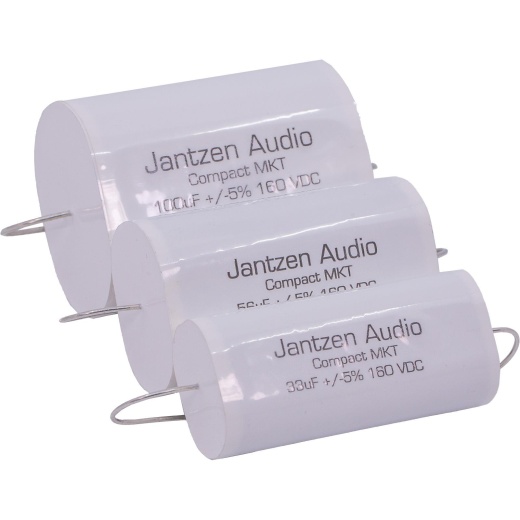

- The Compact MKT capacitors are made with the highest quality metalized polyester film possible.
- Jantzen has been able to make them smaller in size and with better sonic properties compared to “plain/smooth foil” electrolytic capacitors.
- With a voltage rating of 160 volts DC, they are also more versatile to use than electrolytic capacitors, usually only rated at either 63 volts DC or 100 volts DC.
- Due to their rounded square shape (flat top and bottom surface), they can be easily stacked when it is necessary to couple multiple capacitors in parallel to reach a higher capacity value for a certain crossover position.
- As they are stackable, they will take up significantly less space, when compared to round-shaped equivalent values of plain/smooth foil electrolytic, MKT or PP foil capacitors that will need to be mounted side by side.
Technical Data
- Capacitor foil: Metalized polyester foil
- Dielectric insulation: Polyester foil
- Terminal leads: Tinned 4N copper wire
- Voltage rating: 160 VDC / 100 VAC
- Capacity tolerance: +/- 5%
- Dielectric constant: Non-polar dielectric
- Dissipation factor: Extremely low
- Dielectric absorption factor: <0.5% @20°C
- Dielectric thickness: PB=5µm
- Equivalent series resistance (ESR): Extremely low
- Self-inductance: <15 nH
- Insulation resistance: >5000 MΩx µF 10000 MΩ min
- Temperature coefficient: -200°Cx10¯6/°C
- Temperature Range: -55°Cto + 125°C
- Metal layer thickness: PB=0.3 µm
- Metal layer conductivity: PB = 1.2 Ω/ cm²
