- Dimensions: (Ø 21mm - L: 36mm)

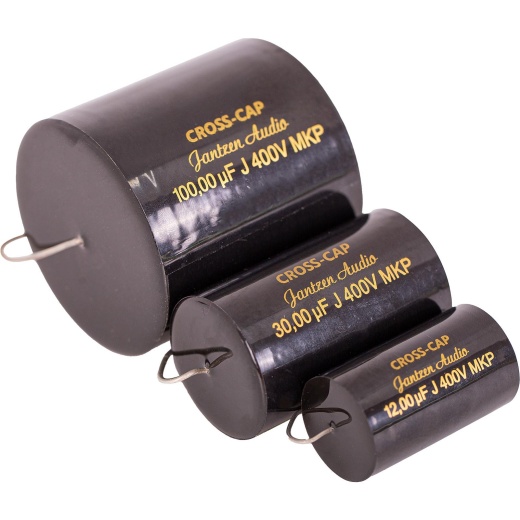

- The Cross Cap is offering a high-level of performance and quality at a very reasonable price point.
- A great multipurpose entry-level audiophile capacitor.
- A single foil (standard type MKP/PP foil) construction that uses a good quality aluminum and zinc based metalized polypropylene foil.
- Available in a very wide range of capacitance values.
- Virtually free of distortion and delivers a pleasant and rather neutral sonic profile.
Technical Data
- Capacitor foil: Polypropylene foil metalized with Zinc (Zn) and Aluminum (Al)
- Dielectric insulation: Polypropylene film
- Terminal leads: Tinned 4N copper wire
- Voltage rating: 400 VDC / 250 VAC
- Working Temperature Range: -40C to +85C
- Capacitance tolerance: ±5%
- Loss factor at 1 kHz (maximum)
• C< l µF : 5 * 104
• C> l < 20 µF : 105
• C> 20 µF : 105 - Insulation resistance at 1 kHz
• C < l µF : 5 * 104 MOhm
• l < 20 µF : 3 * 104 MOhm
•C > 20 µF : 104 MOhm
