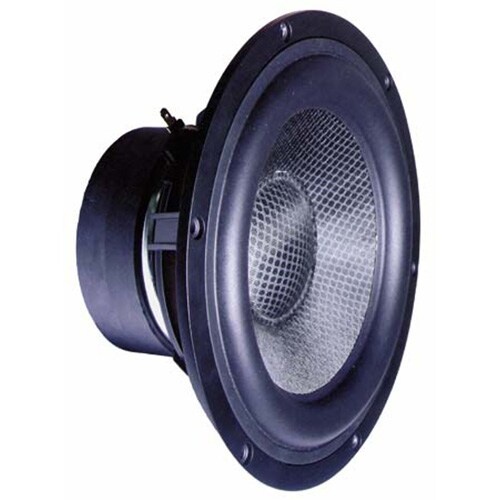

The TIW 200 XS features a fiberglass and polyester fabric sandwich diaphragm, offering enhanced rigidity and minimized resonance for accurate sound reproduction even under demanding conditions. Its extra-wide cone and long voice coil, combined with a substantial magnet system, enable significant excursion for powerful, distortion-free bass. Advanced venting, including a pole piece hole, cutouts in the pole plate, and an aluminum die-cast basket, ensures minimal airflow noise and improved efficiency. Capable of handling up to 180 watts, this woofer is engineered for reliability and longevity. It integrates seamlessly into various cabinet designs, supporting volumes from 20 to 50 liters, with tuning frequencies between 31 Hz and 52 Hz in bass reflex setups. The TIW 200 XS delivers exceptional performance, offering flexibility and precision for custom subwoofer systems that demand high fidelity and deep bass response.
Technical Data- Rated power: 120 W
- Maximum power: 180 W
- Nominal impedance Z: 8 Ohm
- Frequency response: fu–7500 Hz
(fu: Lower cut-off frequency depending on cabinet) - Mean sound pressure level: 84 dB (1 W/1 m)
- Opening angle (-6 dB): 48°/4000 Hz
- Excursion limit: ±12.5 mm
- Resonance frequency fs: 30 Hz
- Magnetic induction: 1.1 T
- Magnetic flux: 1050 µWb
- Height of front pole-plate: 8 mm
- Voice coil diameter: 38 mm
- Height of winding: 30 mm
- Cutout diameter: 190 mm
- Net weight: 3.5 kg
- D.C. resistance Rdc: 6 Ohm
- Mechanical Q factor Qms: 5.19
- Electrical Q factor Qes: 0.5
- Total Q factor Qts: 0.46
- Equivalent Volume Vas: 51.5 l
- Effective piston area Sd: 206 cm²
- Dynamically moved mass Mms: 33 g
- Force factor Bxl: 8.51 Tm
- Inductance of the voice coil L: 1.6 mH
- Connections: 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
