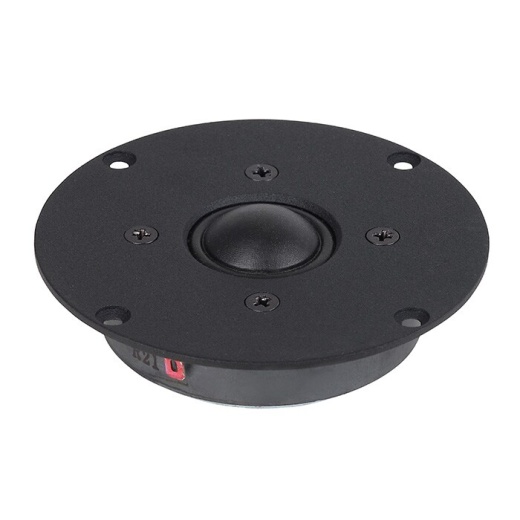

The G 25 FFL's design includes a 25 mm voice coil diameter and an effective piston area of 4.9 cm², contributing to its precise high-frequency reproduction. Its compact dimensions, with a cutout diameter of 80 mm, facilitate easy integration into various speaker systems. The tweeter's construction ensures durability and consistent performance, making it a reliable choice for both new builds and replacement applications in high-fidelity audio systems.
Technical Data- Nominal impedance: 8 Ohm
- Frequency response: 1000-30000 Hz
- Mean sound pressure level: 90 dB (1 W/1 m)
- Opening angle: (-6 dB) 167°/8000 Hz
- Resonance frequency fs: 1600 Hz
- Magnetic induction: 1.7 T
- Magnetic flux: 425 µWb
- Height of front pole-plate: 2.5 mm
- Voice coil diameter: 25 mm
- Height of winding: 2 mm
- Cutout diameter: 80 mm
- Net weight: 0.56 kg
- D.C. resistance Rdc: 5.6 Ohm
- Mechanical Q factor Qms: 0.66
- Electrical Q factor Qes: 1.11
- Total Q factor Qts: 0.41
- Effective piston area Sd: 4.9 cm²
- Dynamically moved mass Mms: 0.3 g
- Inductance of the voice coil L: 0.05 mH
- Connections: 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
- Peak power handling with high pass: 140 W (12 dB/Okt.; 2000 Hz)180 W (12 dB/Okt.; 4000 Hz)
- Nominal power handling with high pass: 80 W (12 dB/Okt.; 2000 Hz)120 W (12 dB/Okt.; 4000 Hz)
