The 900-DAEX32Q-4ASSY from Dayton Audio can turn most rigid, flat surfaces into a speaker. Designed specifically for mounting to vertical surfaces, this exciter uses a dual spring spider to better support the large neodymium motor providing improved linearity. With a 2-layer 32 mm voice coil, this exciter can handle up to 40 watts peak for high output even when attached to thicker surfaces. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, this exciter uses a unique removable mounting plate that can be installed with a single screw. This mounting plate makes it easy to replace or reposition the exciter without damaging the mounting surface. In addition a pre-terminated 6' wire is included, making wiring as easy as can be. The 900-DAEX32Q-4ASSY is perfect for turning whatever you can imagine into a speaker, such as cabinet doors, monitors, windows, garage doors, ect…
Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.

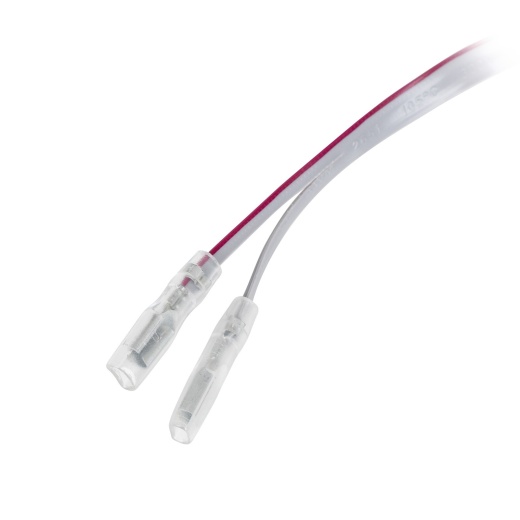

Specifications: • Power handling: 20 watts RMS, 40 watts peak • VCdia: 32 mm • Nominal impedance: 4 ohms • Re: 3.2 ohms • Le: 0.11 mH • Fs: 220 Hz • Dimensions: 2.38" (60.5 mm) dia. x 1.25" (32 mm) H • Wire length: 6’ 8” • Wire terminations: 2 x 0.11” female disconnect and 1 x Molex 43025 • Weight: 130 grams.
To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out .
