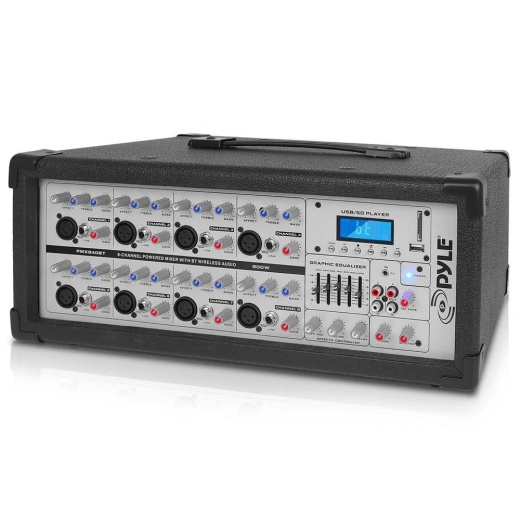

The PMX840BT's Bluetooth capability simplifies audio streaming, eliminating the need for physical connections and allowing performers to control playback remotely. The inclusion of USB and SD card readers expands media playback options, supporting MP3 files directly from storage devices. The auxiliary input provides additional connectivity for various audio sources, enhancing the mixer's versatility. Equipped with balanced microphone and line inputs, the mixer ensures high-quality signal transmission, crucial for professional sound reinforcement. The master 5-band graphic equalizer enables users to fine-tune the overall sound output, adapting to different acoustic environments. Each channel's independent volume, EQ, and effects controls allow for detailed sound shaping, ensuring each input source is balanced and clear. Overall, the Pyle PMX840BT combines functionality and flexibility, making it a valuable asset for audio professionals seeking a reliable mixing solution.
Technical Specifications
- Bluetooth Wireless Network Name: ‘AC46XX’
- Bluetooth Version: 2.1+EDR
- Wireless Range: 30+ ft.
- Power Output: 800 Watt MAX
- 8 Ohm Impedance Each Channel
- Line Level Impedance 10K Ohms @ -10dBv
- Mono Microphone Inputs (XENYX Mic Pre-Amp)
- XLR: Electronically Balanced Discrete Input Circuit
- Frequency Response: <10Hz–150kHz (-1dB), <10Hz–200kHz (-3dB)
- Gain Range: +10 - +60dB
- Max. Input Level: +12dBu @ +10dB Gain
- Impedance: Approx. 2.6k Ω Balanced
- Signal-to-Noise Ratio: 110dB / 112dB, A–Weighted
- Distortion: (THD+N): 0.005% / 0.004%, A-Weighted
- Channel Equalization: Control Range
- High @ 10K +/-15dB, Low @ 60K +/-15dB
- Master EQ Frequency Hz: 60, 250, 1K, 4K, 12K
- Boost/Cut Control: +/-12dB
- Effects Loop & Send: 1/4'' TS Connectors Unbalanced
- Impedance: Approx. 1k Ohm -10dBv
- Weight: 21.8 lbs.
