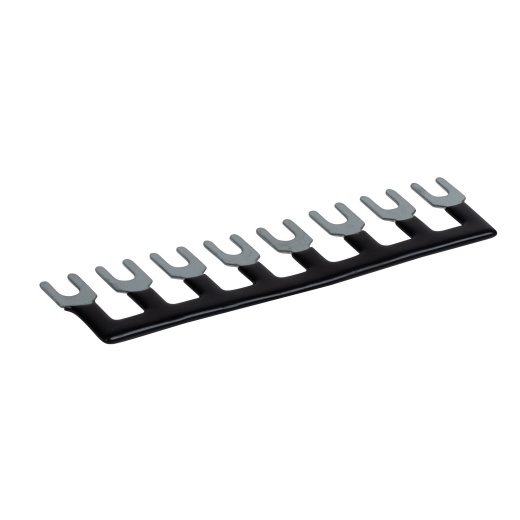

Why fool with stripping wires and wrapping them around screws? This insulated 8 position terminal jumper bar connects all 8 poles together in seconds making the whole barrier strip one conductor for positive or negative hook-up. Break it in half and now you have two 6 position jumper bars making one barrier strip positive and negative, or use it on a smaller 6 pole terminal barrier strip. The insulation helps prevent accidental electrical shock or short circuits. Its 12 mm pitch only fits 12 mm pitch lug terminal barrier strips.
Specifications: • Terminals: 8 • External fork width: 0.32" (8.07 mm) • Internal fork width: 0.16" (4.1 mm) • Fork thickness without insulator: 0.033" (0.85 mm) • Total bar width with forks: 3.66" (93 mm) • Pitch: 12 mm.
