The MW-164 employs a vented double magnet system which results in higher power handling, longer linear excursion, and superior bass response. Polymer treated paper cone, 3 " Hexatech aluminum voice coil, and rubber surround.

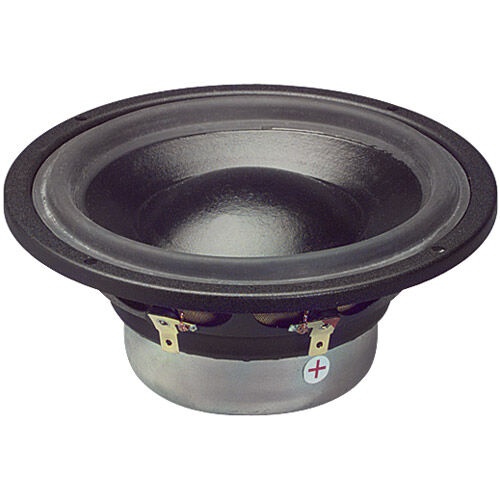

Morel Mw 164 6" Woofer
SKU: PXP-297-030
Out of stock
Out of stock
Options
Brand
Impedance
8Ω
Sensitivity
86dB 2.83V/1m
Depth
2.55"
Nominal diameter
6"
DC resistance (Re)
6.4Ω
Model
MW 164
Unit of Measure
Each
Power Handling (RMS)
150 Watts
Power Handling (MAX)
1000 Watts
Voice Coil Diameter
3"
Resonant Frequency (Fs)
48Hz
Voice Coil Inductance (Le)
0.61mH
Mechanical Q (Qms)
2.82
Electromagnetic Q (Qes)
0.89
Total Q (Qts)
0.68
Compliance Equivalent Volume (Vas)
0.4ft³
Mechanical Compliance of Suspension (Cms)
0.57mm/N
BL Product (BL)
6.15T·m
Maximum Linear Excursion (Xmax)
4.3mm
Surface Area of Cone (Sd)
119cm²
Cone Material
Treated Paper
Surround Material
Rubber
Magnet Material
Ferrite
Overall Outside Diameter
6.3"
Baffle Cutout Diameter
5.375"
# Mounting Holes
4
Sealed Volume
0.5ft³
Sealed F3
57.8Hz
Vented Volume
1ft³
Vented F3
36.4Hz
Voice Coil Former
Aluminum
Voice Coil Wire Material
Aluminum
Diaphragm Mass Inc. Airload (Mms)
14.9g
Frequency Response
45 to 2,800Hz
Barcode
844632019807
Morel MW 164 specification sheet
Morel Manufacturer Warranty
