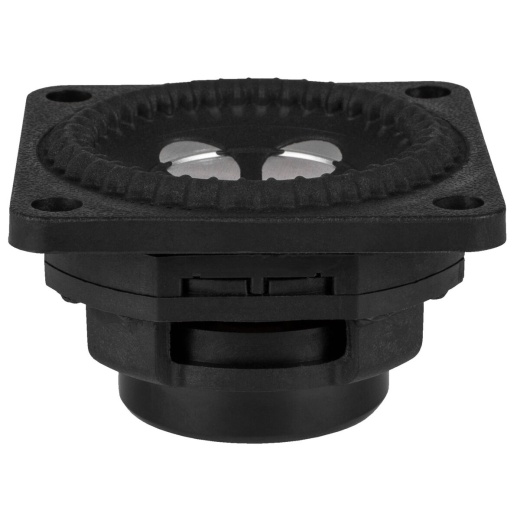

Tang Band W2-2136S 2" Aluminum Full Range Neodymium Driver

SKU: PXP-264-839
  • Smooth response down to 120 Hz for easy transition to a subwoofer
  • Excellent choice for use in line arrays and modern mini-speaker designs
  • Unique Santoprene surround provides damping for the aluminum cone
  • Powerful neodymium motor keeps size and weight to a minimum
Unit Price
Quantity
Subtotal
US$ 54.21
US$ 54.21
US$ 53.881%
2
US$ 53.691%
3
Congratulations! You got a great price!
Add to cart Added
Checkout
Free shipping on orders over US$ 200
Buy more items from this warehouse and get free shipping!
Options
Brand
Impedance
Sensitivity
83dB 2.83V/1m
Depth
1.36"
Nominal diameter
2"
DC resistance (Re)
3.4Ω
Model
W2-2136S
Unit of Measure
Each
Power Handling (RMS)
10 Watts
Power Handling (MAX)
20 Watts
Voice Coil Diameter
1"
Resonant Frequency (Fs)
120Hz
Voice Coil Inductance (Le)
0.03mH
Mechanical Q (Qms)
1.59
Electromagnetic Q (Qes)
0.39
Total Q (Qts)
0.31
Compliance Equivalent Volume (Vas)
0.0091ft³
Mechanical Compliance of Suspension (Cms)
0.801mm/N
BL Product (BL)
3.71T·m
Maximum Linear Excursion (Xmax)
2mm
Surface Area of Cone (Sd)
15cm²
Cone Material
Aluminum
Surround Material
Santoprene®
Basket / Frame Material
Polymer
Magnet Material
Neodymium
Overall Outside Diameter
2.27"
Baffle Cutout Diameter
2.16"
# Mounting Holes
4
Vented Volume
0.02ft³
Vented F3
107.8Hz
Voice Coil Former
Paper
Bolt Circle Diameter
2.55
Voice Coil Wire Material
Copper
Frequency Response
120 to 15,000Hz
Barcode
848864023724
Tang Band W2-2136 Spec Sheet
Tang Band Manufacturer Warranty
Description

Tang Band, one of the leaders in small full range technology, presents the W2-2136S 2" full range driver. This is a perfect candidate for use in portable speakers, computer speakers, or even TV sound bars.

Shipping specs
Weight
0.35 lbs
Dimensions
3" x 0" x 1.36"
Shipping from
This product is shipped from our supplier's warehouse in Springboro, OH, United States
Our guarantee
This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
A 25% handling charge is levied against all authorized returns except those due to our error. Unauthorized returns are subject to a 40% handling charge. Damages & defects must be reported to us within 14 days.
